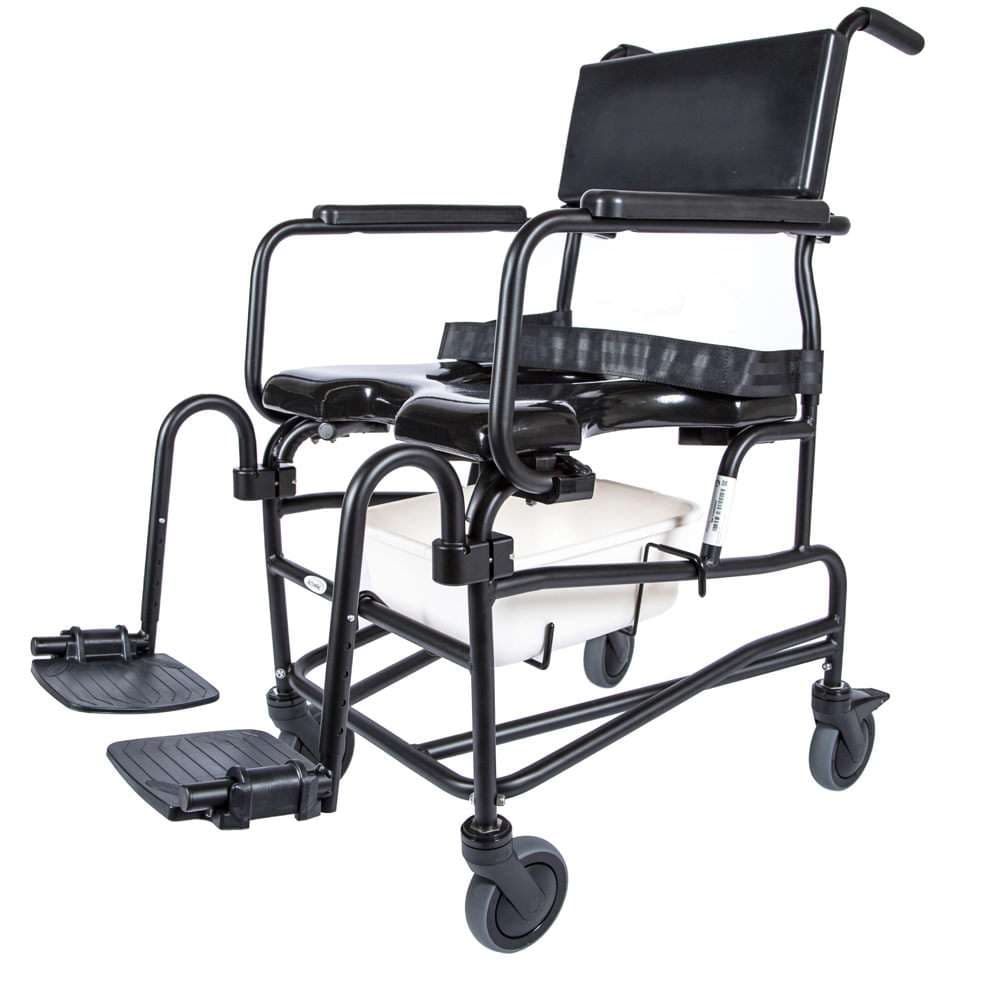

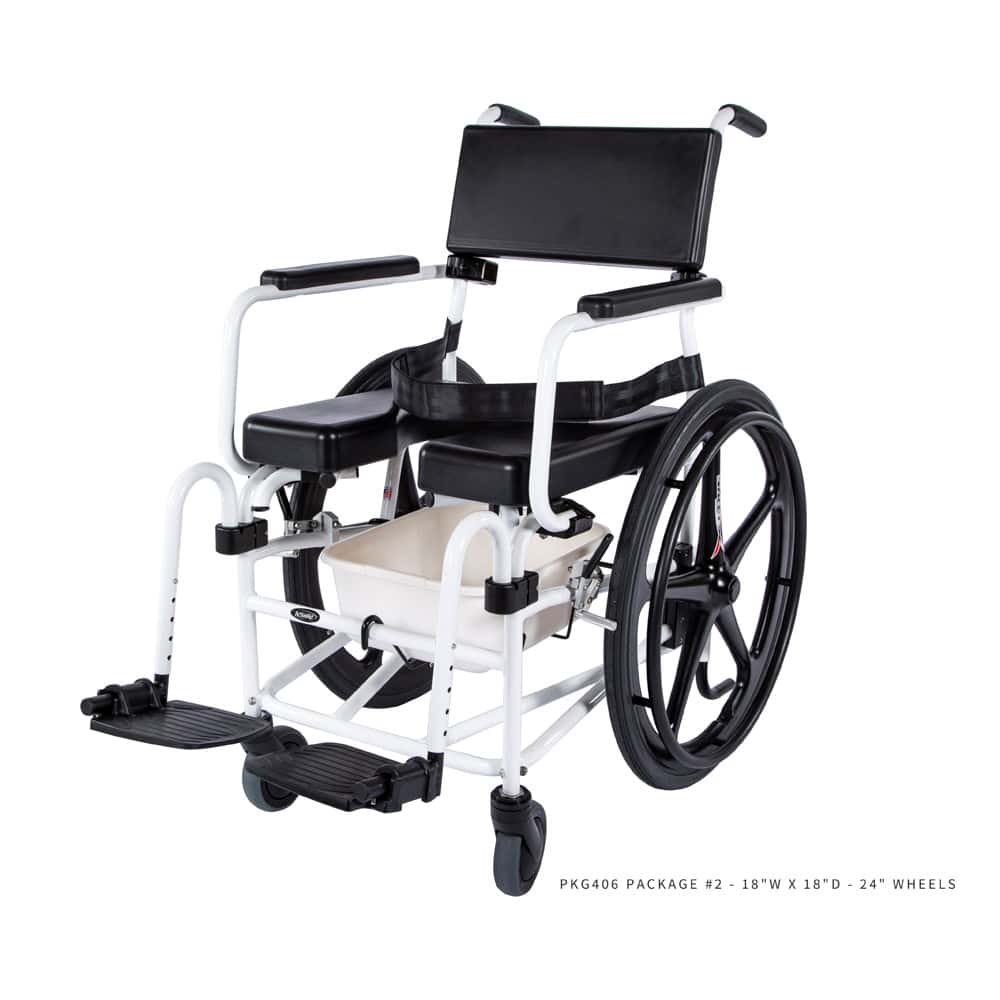

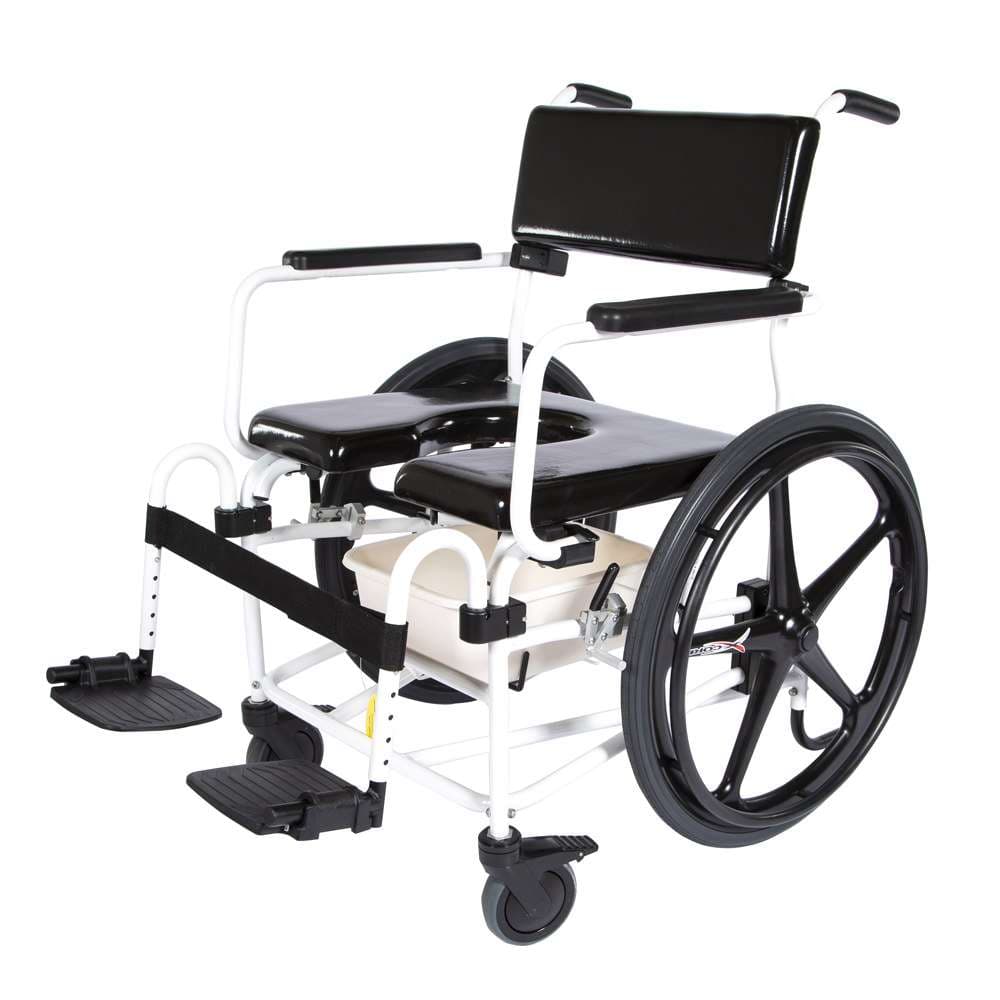

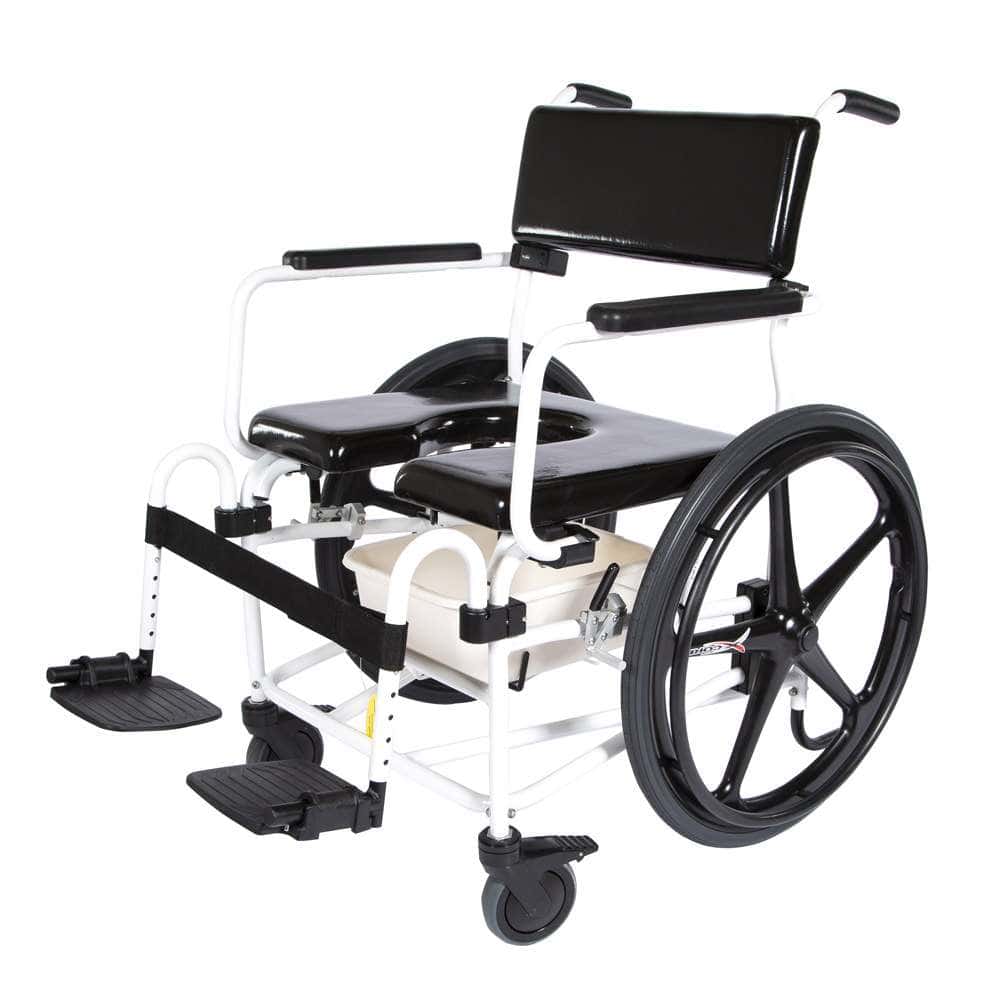

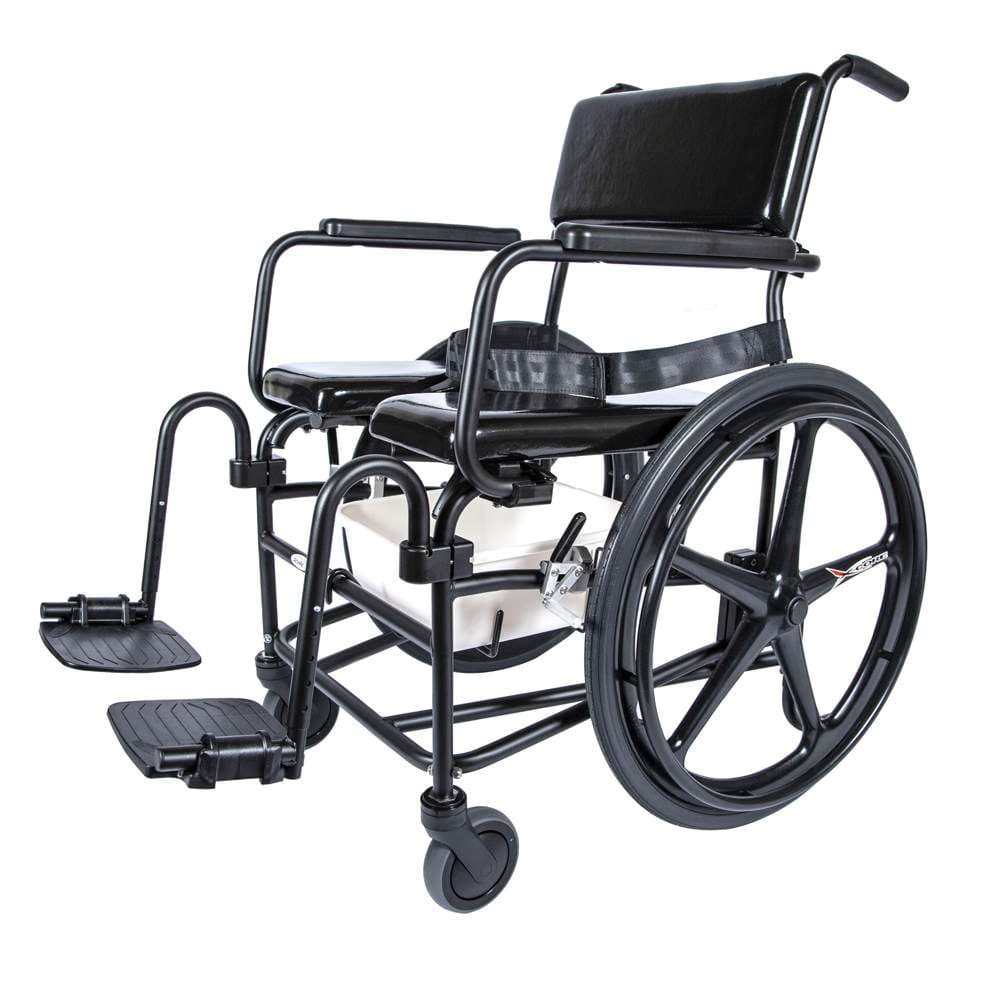

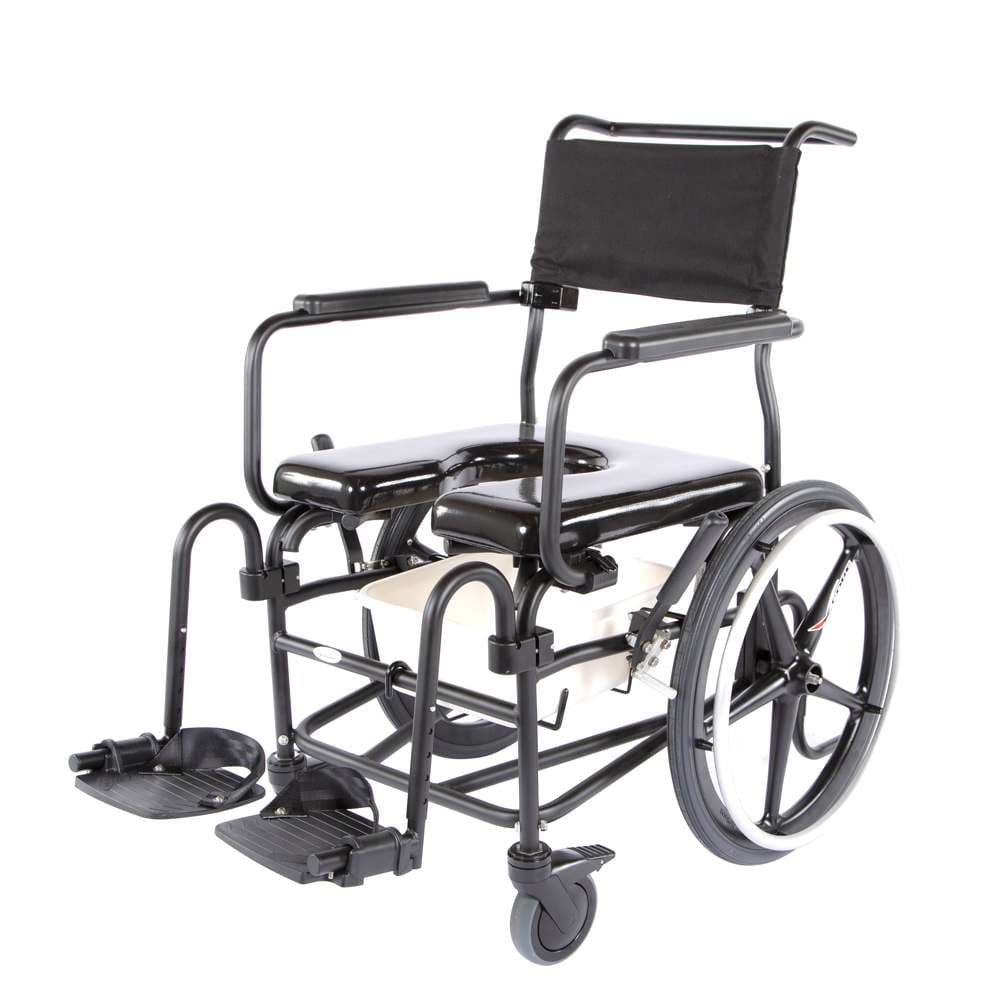

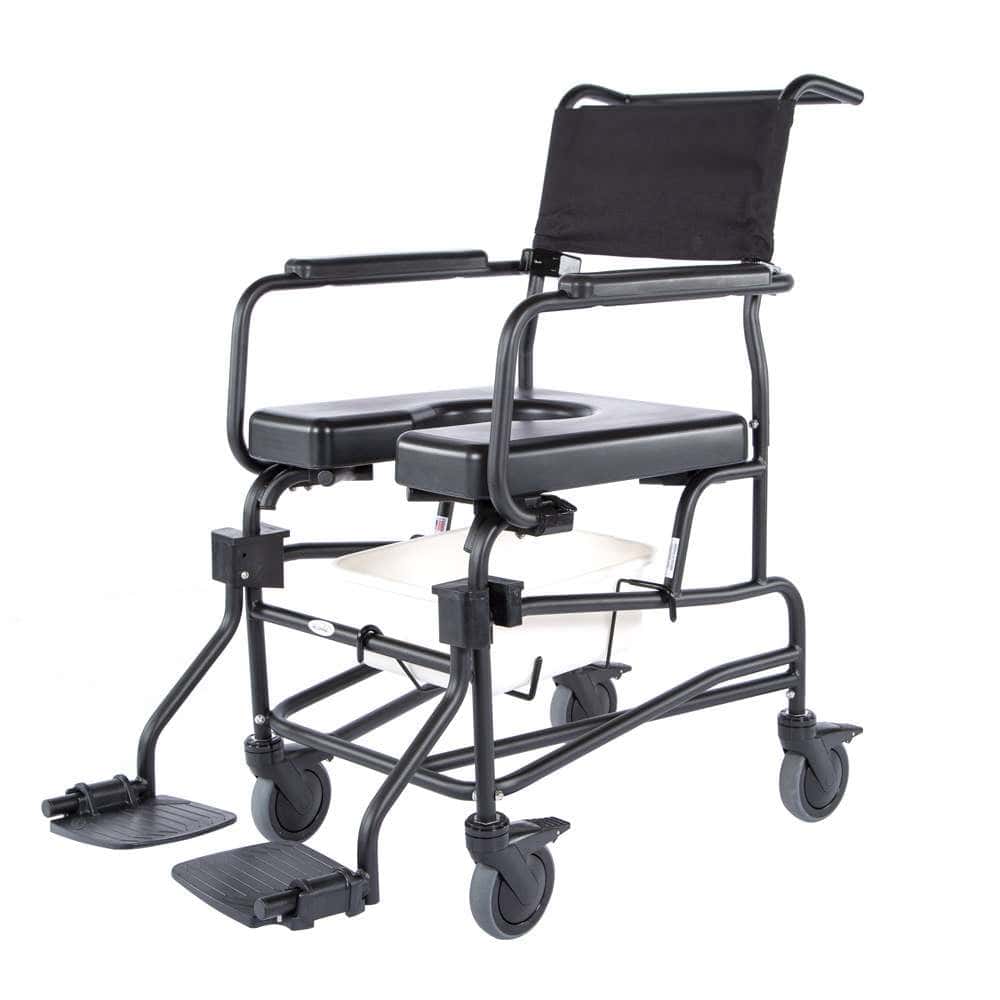

ActiveAid 600 Shower Commode Chair |
Seat Width |
18" |
18" |
20" |
22" |
Weight Capacity |
350 lbs. |
350 lbs. |
350 lbs. |
350 lbs. |
Width between Arm Rests Flip-Up with Pad |
22.25" |
22.25" |
24.25" |
26.25" |
Width between Arm Rests - Arm Troughs |
20.25" |
20.25" |
22.25" |
24.25" |
Seat Depth |
18" |
20" |
18" |
18" |
Seat Height From Floor to Top of Seat |
Front to Back 24" Wheels - 23" - 21.25"
5" Rear Casters - 23" - 22.25" |
Usable Seat Depth w/Solid Back |
18" |
20" |
18" |
18" |
Leg Rest Range - Gooseneck |
14" - 20.25" |
14" - 20.25" |
14" - 20.25" |
14" - 20.25" |
Leg Rest Range - Gooseneck w/ Padded Footplate |
12.75" - 19.25" |
12.75" - 19.25" |
12.75" - 19.25" |
12.75" - 19.25" |
Leg Rest Range - Elevating (Up) |
17" - 24" |
17" - 24" |
17" - 24" |
17" - 24" |
Leg Rest Range - Elevating (Up) w/ Padded Footplate |
15.75" - 22.75" |
15.75" - 22.75" |
15.75" - 22.75" |
15.75" - 22.75" |
Leg Rest Range - Elevating (Down) |
16.5" - 23.5" |
16.5" - 23.5" |
16.5" - 23.5" |
16.5" - 23.5" |
Leg Rest Range - Elevating (Down) w/ Padded Footplate |
15.25" - 22.25" |
15.25" - 22.25" |
15.25" - 22.25" |
15.25" - 22.25" |
Leg Rest Range - Composite/Mount |
17.75" - 18.75" |
17.75" - 18.75" |
17.75" - 18.75" |
17.75" - 18.75" |
Leg Rest Range - One Piece Footplate |
19" |
19" |
19" |
19" |
Arm Height from Top of Seat - Flip Up w/Pad |
8" |
8" |
8" |
8" |
Arm Height from Top of Seat - Arm Troughs |
8.25" |
8.25" |
8.25" |
8.25" |
Back Height from Top of Seat |
16.5" |
16.5" |
16.5" |
16.5" |
Gap Between Top of Seat and Bottom of Back |
8.5" |
8.5" |
8.5" |
8.5" |
Seat to Back Angle |
11° |
11° |
11° |
11° |
Under Seat Height Clearance |
18.25" |
18.25" |
18.25" |
18.25" |
Under Seat Width Clearance w/ 24" Wheels |
14" |
14" |
16" |
18" |
Under Seat Width Clearance w/ 5" Rear Casters |
15.75" |
15.75" |
17.75" |
19.75" |
Overall Width w/ 24" Wheels |
25.25" |
25.25" |
27.25" |
29.25" |
Overall Width w/ 5" Rear Casters & Std. Arms |
22.5" |
22.5" |
24.5" |
26.5" |
Overall Width w/ 5" Rear Casters & Arm Troughs |
26.5" |
26.5" |
28.5" |
30.5" |
Overall Min Length w/ 5" Rear Casters |
41.5" |
43.5" |
41.5" |
41.5" |
Overall Min Length w/ 24" Rear Wheels |
42.5" |
44.25" |
42.5" |
42.5" |
Back of Unit to Start of Commode Opening with 24" Wheels |
15.5" |
15.5" |
15.5" |
15.5" |
Back of Unit to Start of Commode Opening with 5" Rear Casters |
14.75" |
14.75" |
14.75" |
14.75" |
Turning Radius - Min w/ 5" Rear Casters |
21" |
22" |
22" |
22.5" |
Seat Used to Generate Specifications |
#60905 22" x 18" x 2" Thick
|
