ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope
Product Information
ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
ADC Diagnostix 54122 3.5V Portable Coax Plus Ophthalmoscope
Product Configuration Options
Starts From
Quantity
Product Features and Policies

FSA/HSA Eligible
Product Features and Policies

FSA/HSA Eligible

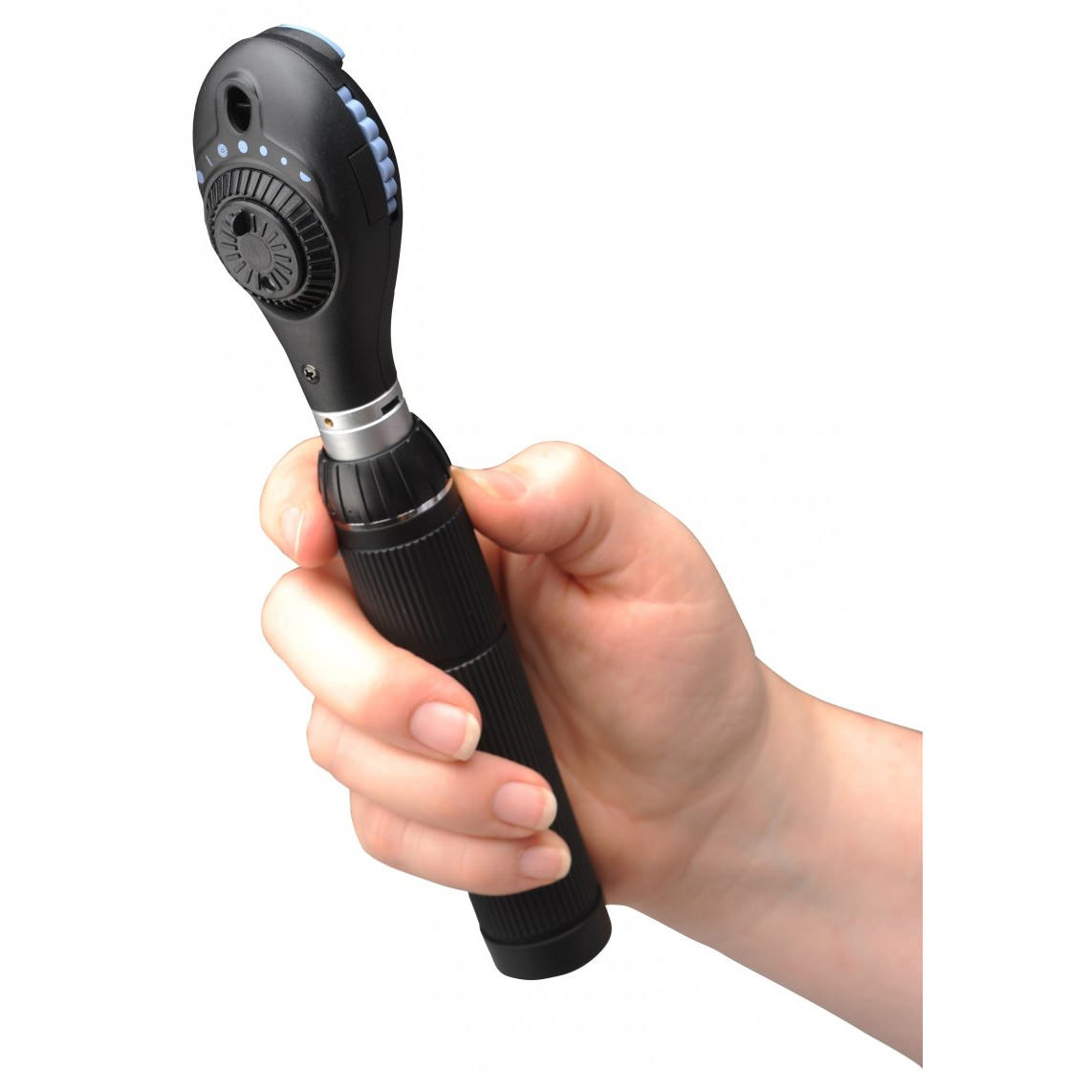

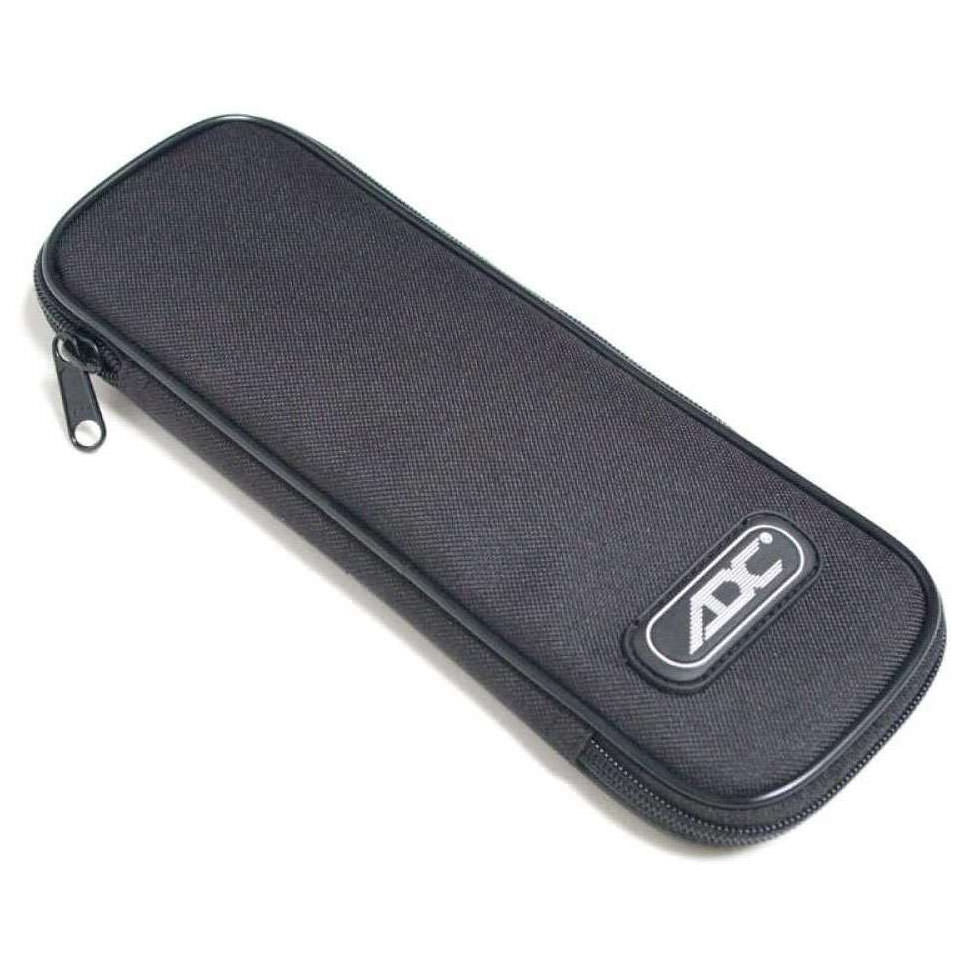

Complete instrument includes our 3.5V Coax Plus Ophthalmoscope head, plug-in rechargeable Li-ion battery handle in a zippered padded nylon case.

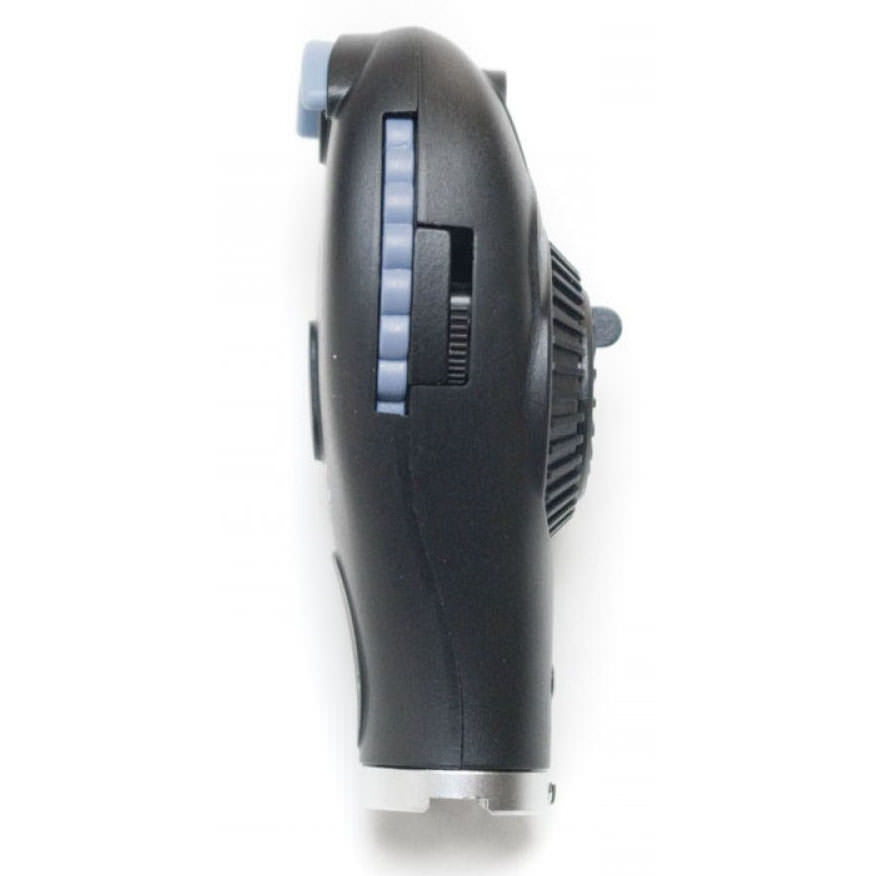

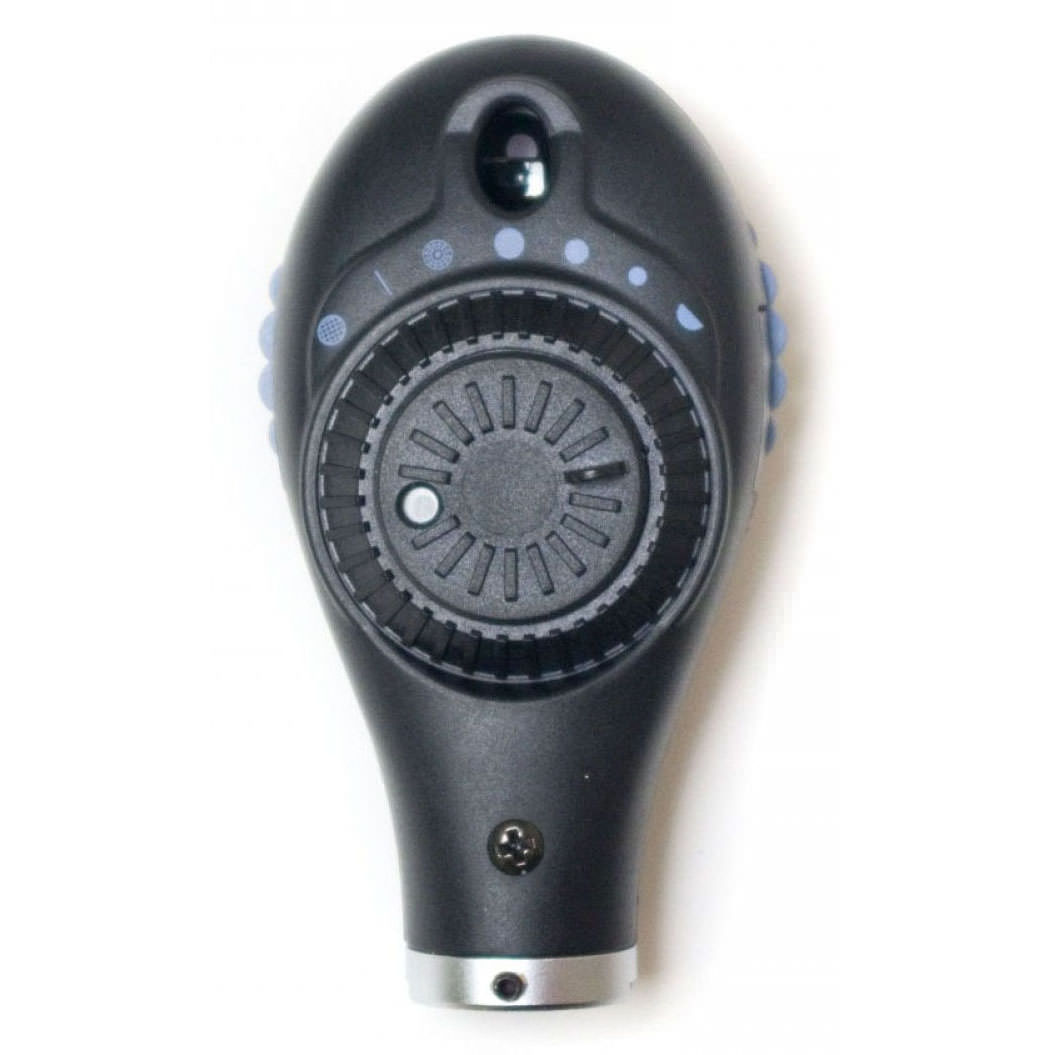

Coax Plus Ophthalmoscope Head (p/n 5442) features:
- High-performance aspherical condenser lens reduces corneal reflection
- Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand Equation)
- Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions
- Synthetic rubber brow rest facilitates use with practitioner eyeglasses
- Dust proof
- Magnified, illuminated aperture viewing window
- Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
- Anti-theft locking feature is standard
- Choose from halogen/xenon or high-performance AdLED illumination
- Two-year warranty on instrument, lifetime warranty on AdLED lamp
- 89 viewing lenses from -44 to +45 in single step
- 28 aperture/filter combinations for improved diagnostic capability
- Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus in lieu of the 89 viewing lenses
- The addition of a Karo (grid) aperture that allows for easier transfer of observations to standard Karo (graph) paper

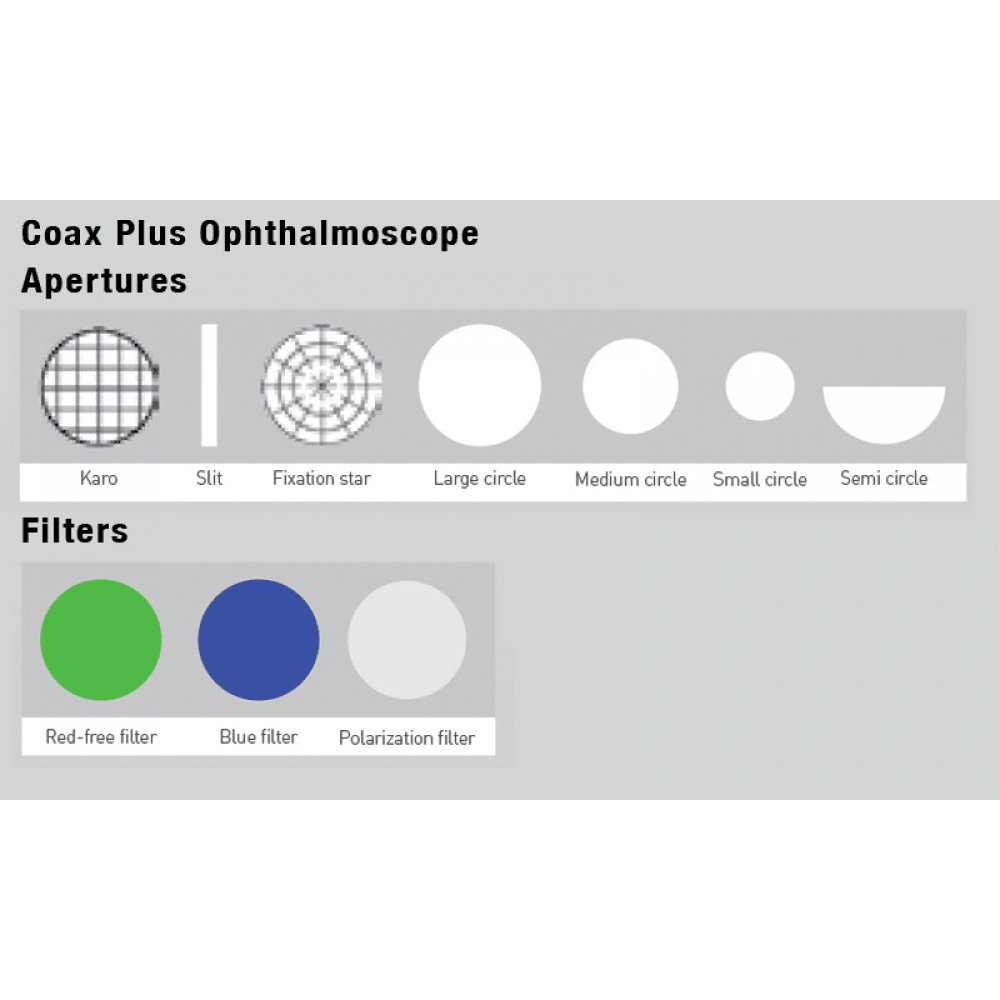

6 apertures include:
- Slit “ used to help determine levels of tumors and lesions
- Fixation;“;has graduated crosshairs for measuring eccentric fixation or locating lesions
- Large;“;standard aperture for a dilated pupil and general examination of the eye
- Small;“;provides excellent view of fundus through an undilated pupil
- Micro spot;“;allows quick entry into small, undilated pupils
- Half moon;“;provides a combination of depth perception and field of view
3 filters (plus neutral) include:
- Red free;“;excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers
- Cobalt;“;used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
- Polarizing “ virtually eliminates corneal reflection
Battery Handle features:
- C-sized handle with 1400mAh Li-ion battery
- CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip
- Adtronic electronic rheostatic light intensity control provides infinite continuous control and auto-off feature after two minutes
- Top half of handle unscrews to access U.S. wall plug (EU compatible plug option is available; add "-EU" to model number when ordering)
- Li-ion battery provides two to three hours continuous use with halogen/xenon lamp, 30 hours use with LED lamp when charged for 24 hours
- Up to 1,200 charge cycles
- Universal bayonet mount for compatibility with other brands of 3.5V instrument heads
