For examination of the eye

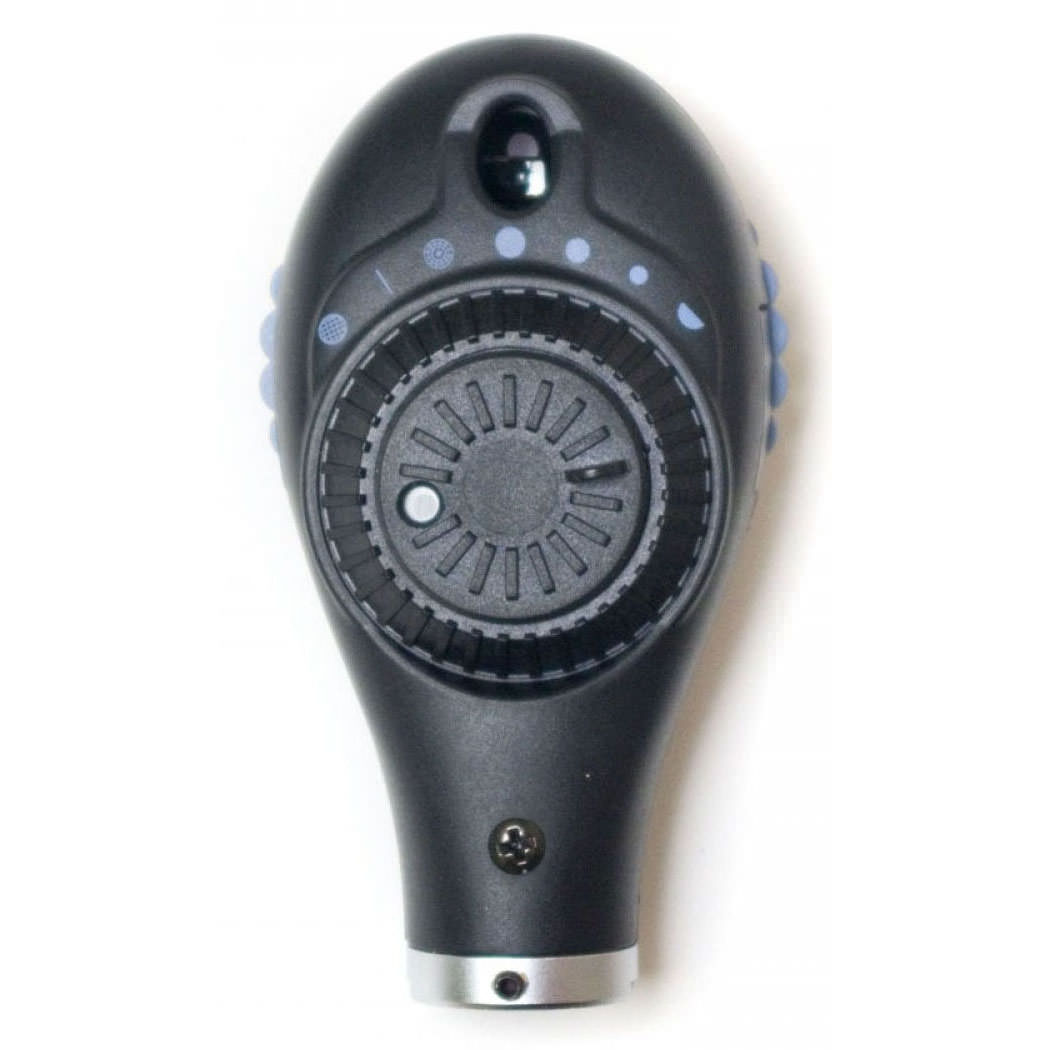

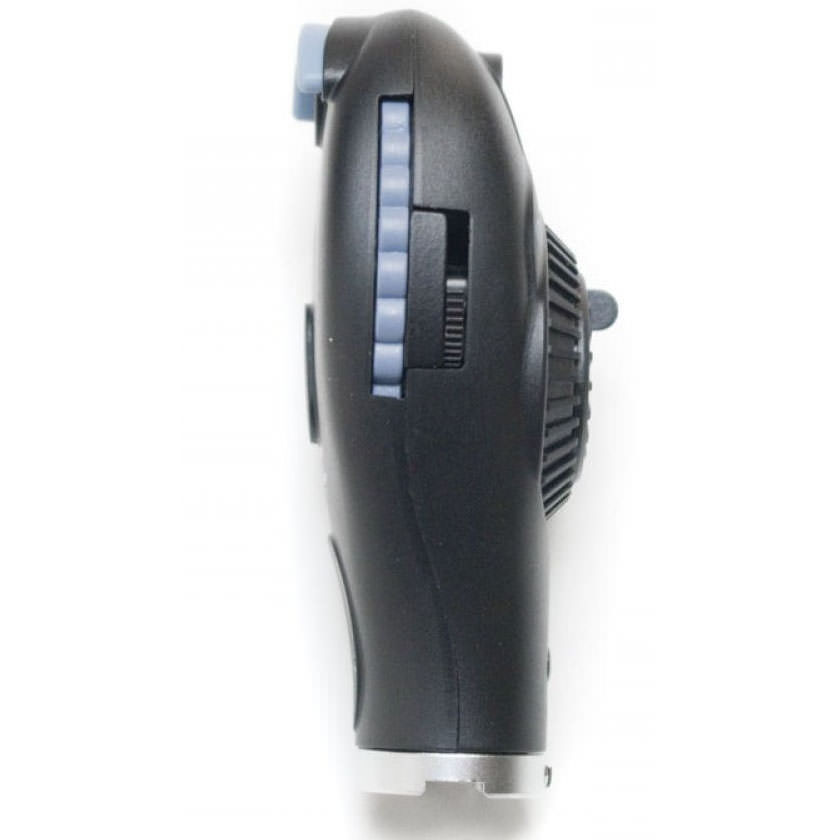

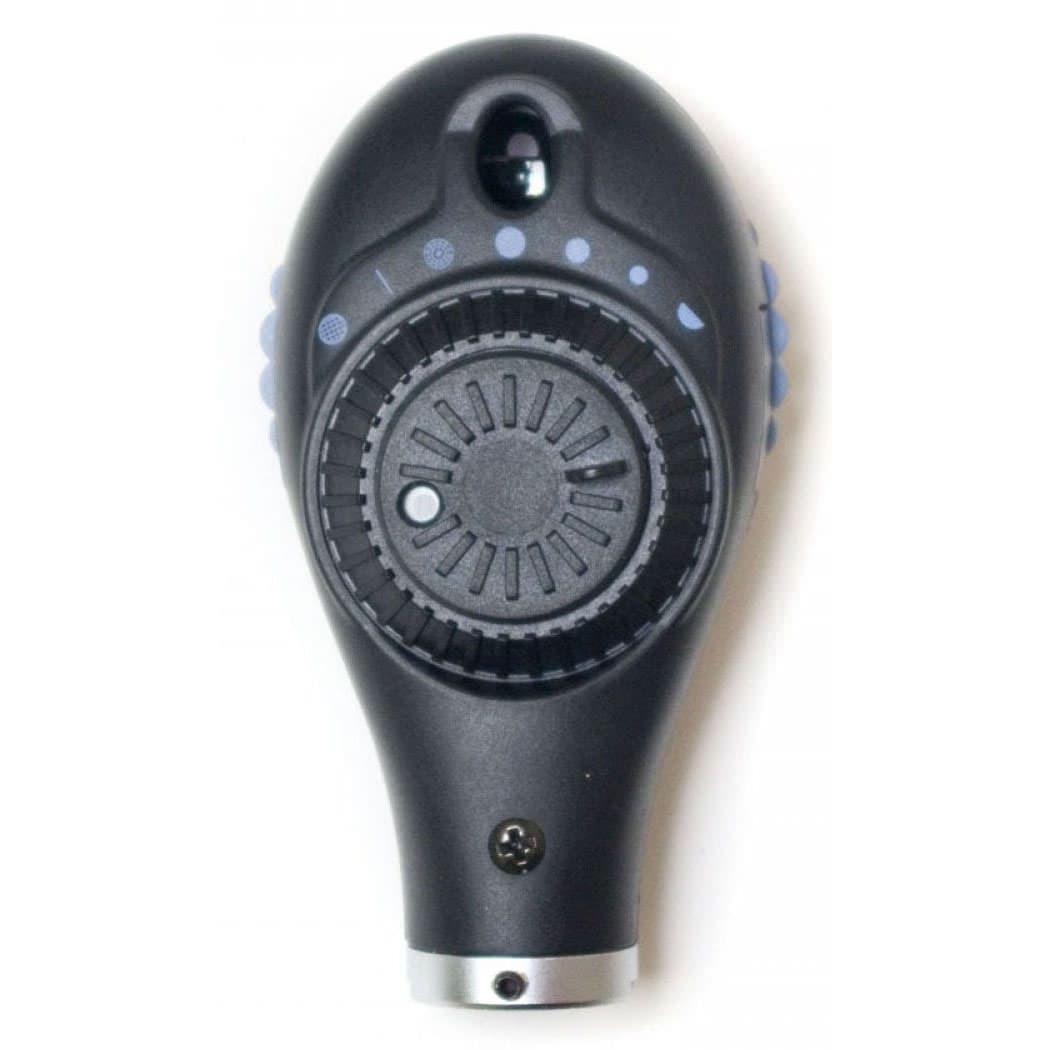

Our Diagnostix 3.5 v Coax Plus Ophthalmoscope Head features:

• High performance aspherical condenser lens reduces corneal reflection
• Further reduction provided by utilizing distinct parallel observational and illuminating light beam. (Gullstrand principal)
• Ergonomic design and integral thumb rest improves stability and allows one finger control of all functions
• Synthetic rubber brow rest facilitates use with practitioner eyeglasses
• Dust proof
• Magnified/illuminated aperture viewing window
• Universal bayonet mount for compatibility with other brands of 3.5v power supply handles
• Anti-theft locking feature is standard

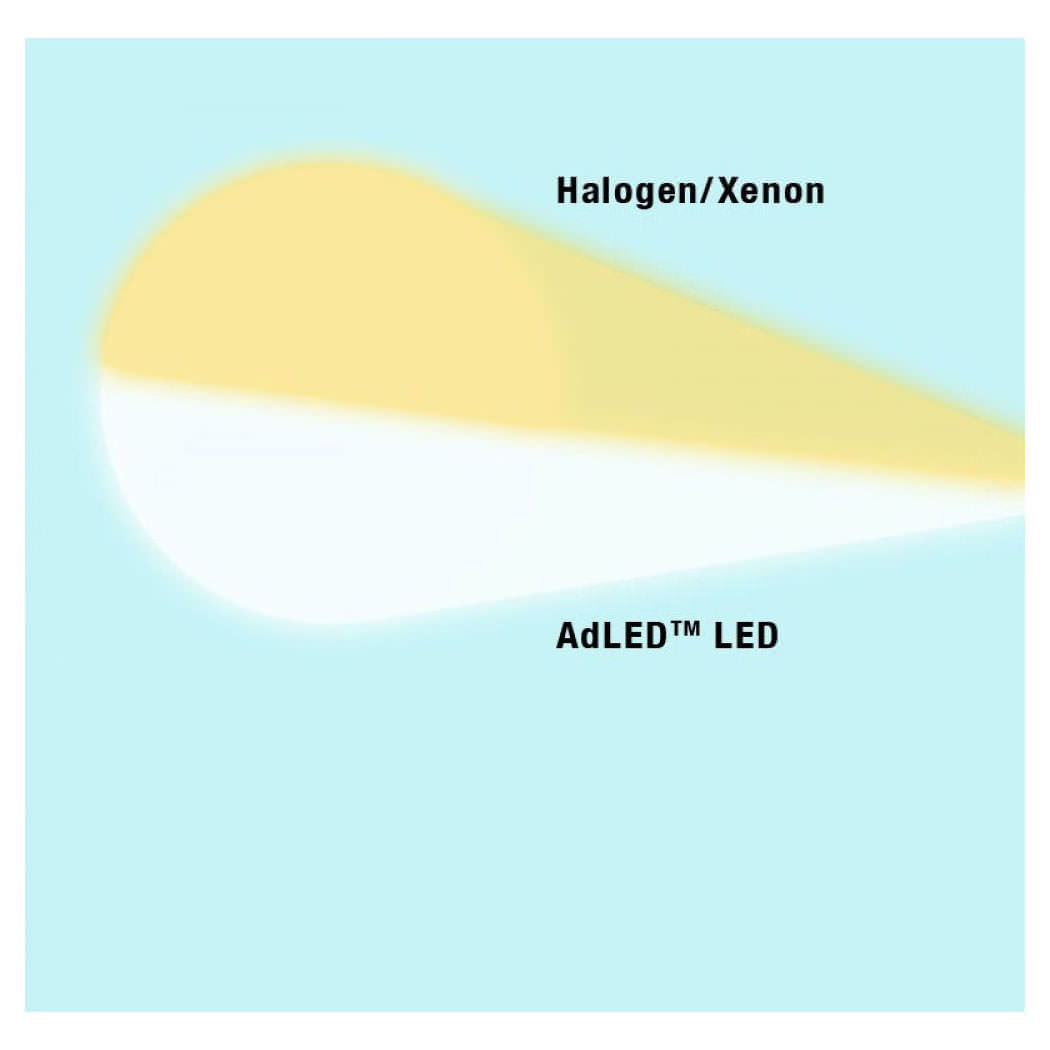

• Choose from Halogen/Xenon or advanced AdLED illumination
• 2 year warranty on instrument. Lifetime on AdLED lamp
• Secondary Focusing wheel with zero retention for quick correction of ametropias. Use this to provide virtually unlimited fine focus OR as a fast focus in lieu of the 89 viewing lenses
• 89 viewing lenses - Plus single step from 1-45. Minus single step from 1-44
• 28 aperture/filter combinations for improved versatility

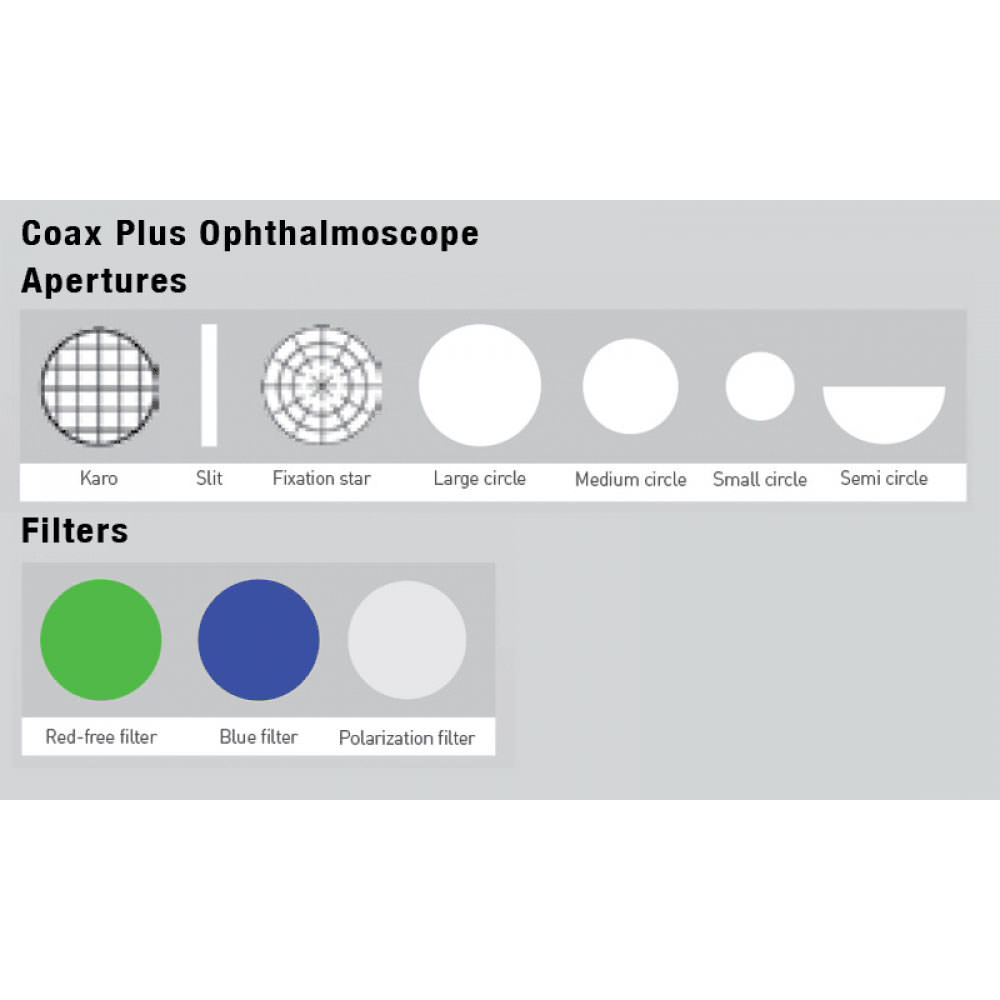

7 apertures include:

• Karo “ grid like overlay that allows for easier transfer of observations to standard Karo (graph) paper
• Slit “ used to help determine levels of tumors and lesions
• Fixation - has graduated cross-hairs for measuring eccentric fixation or locating lesions
• Large - standard aperture for a dilated pupil and general examination of the eye
• Small - provides excellent view of fundus through an undilated pupil
• Micro spot- allows quick entry into small, undilated pupils
• Half moon “ provides a combination of depth perception and field of view

3 filters (plus neutral) include:

• Red free- excludes red rays from examination field for easy identification of veins, arteries and nerve fibers
• Cobalt - used with fluorescent dye to view small lesions, abrasions and foreign objects on the cornea
• Polarizing “ virtually eliminated corneal reflection
