Alimed Multi-Lumen Subcutaneous Infusion Set Winged Hub| MCQU3609-SS
Product Information

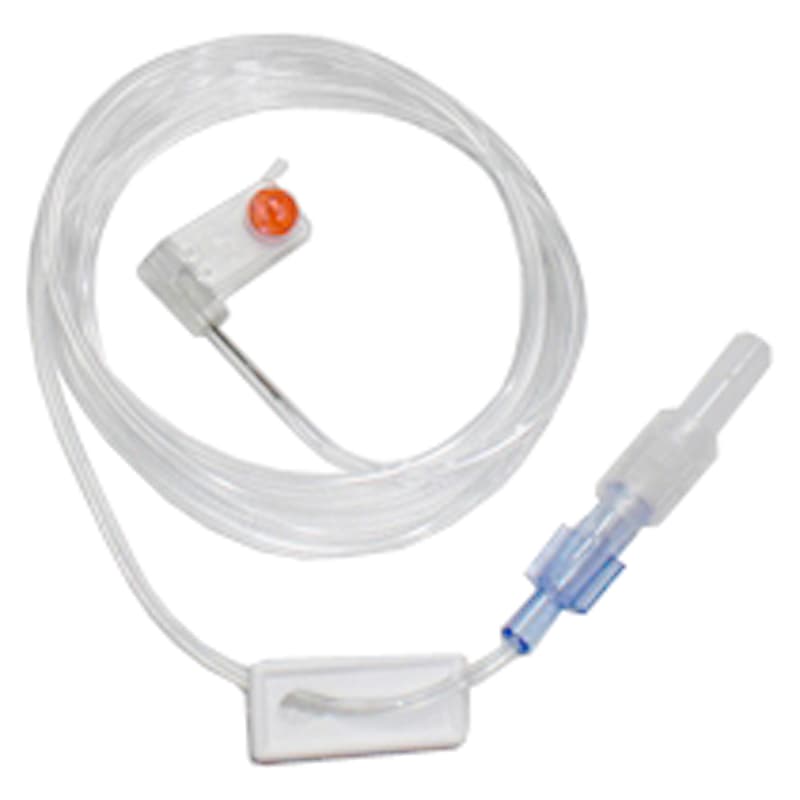

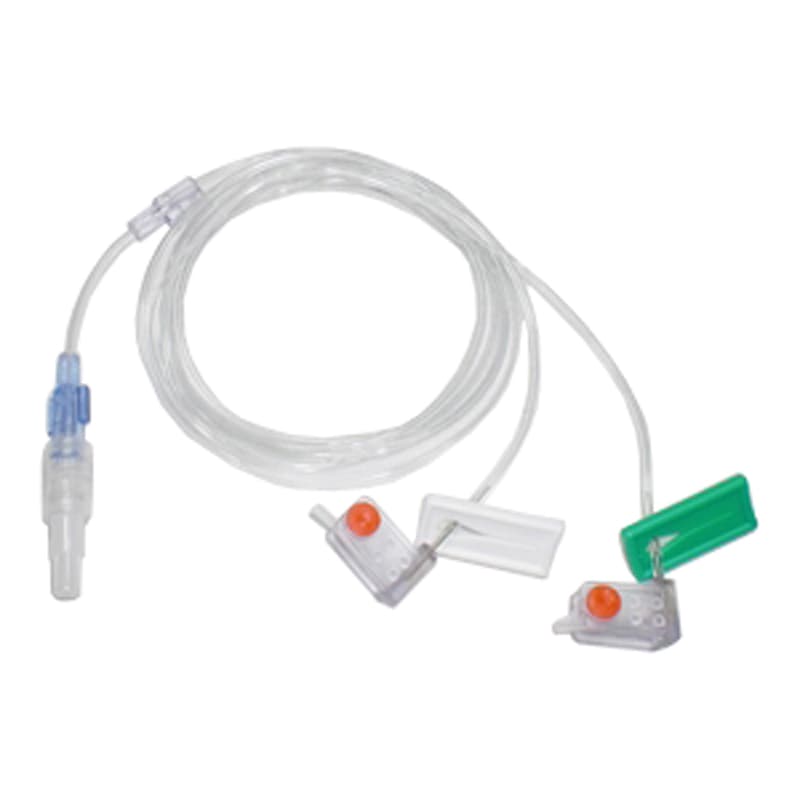

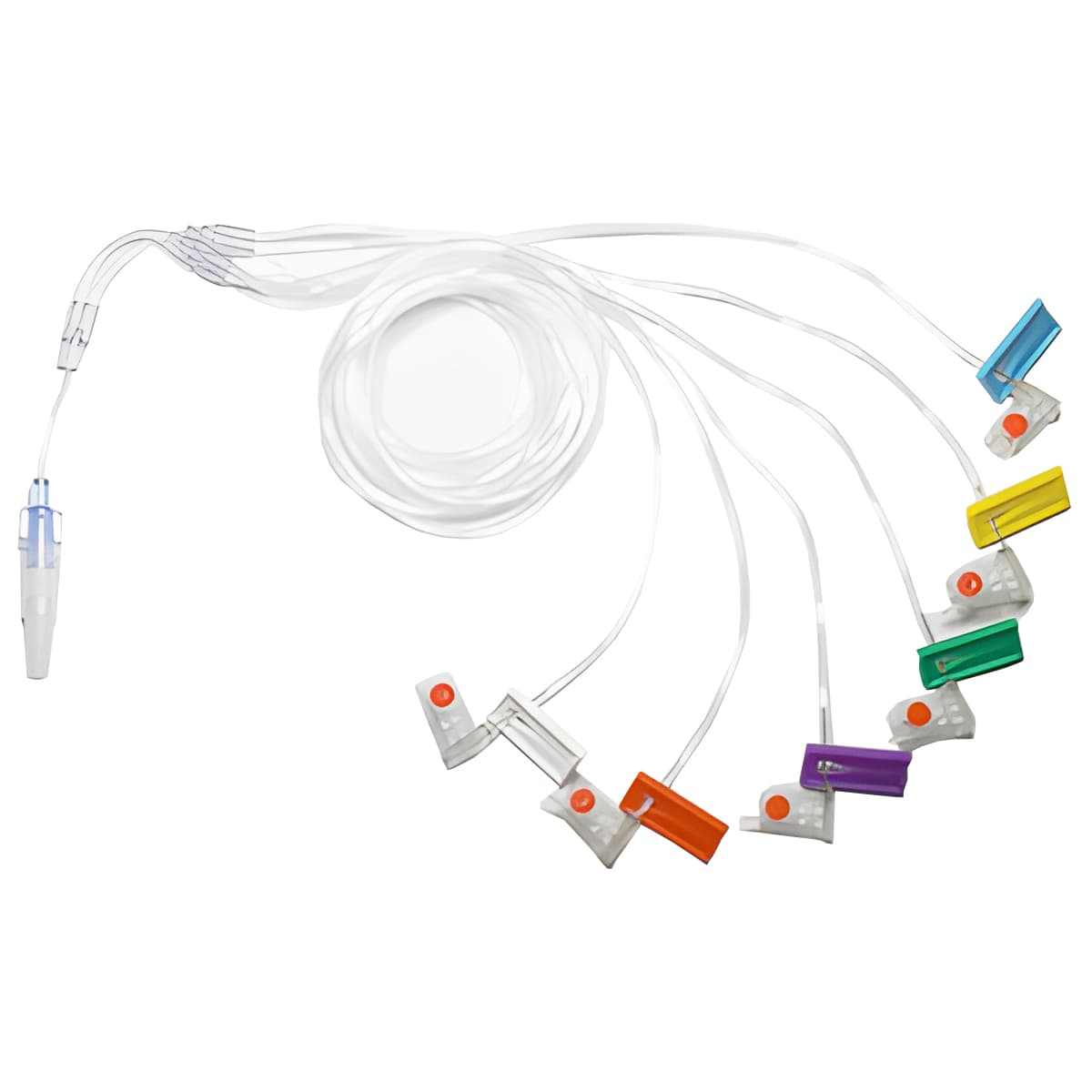

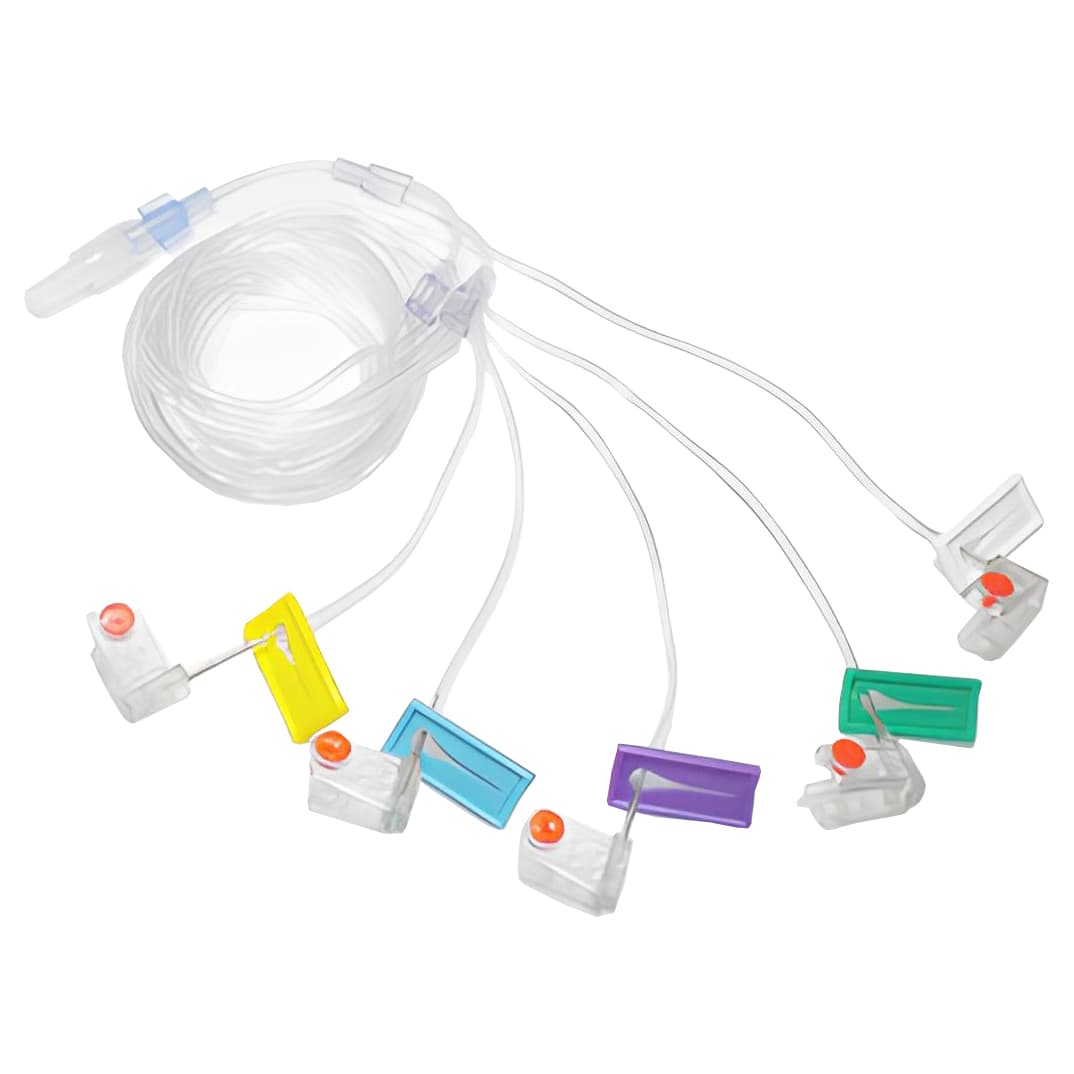

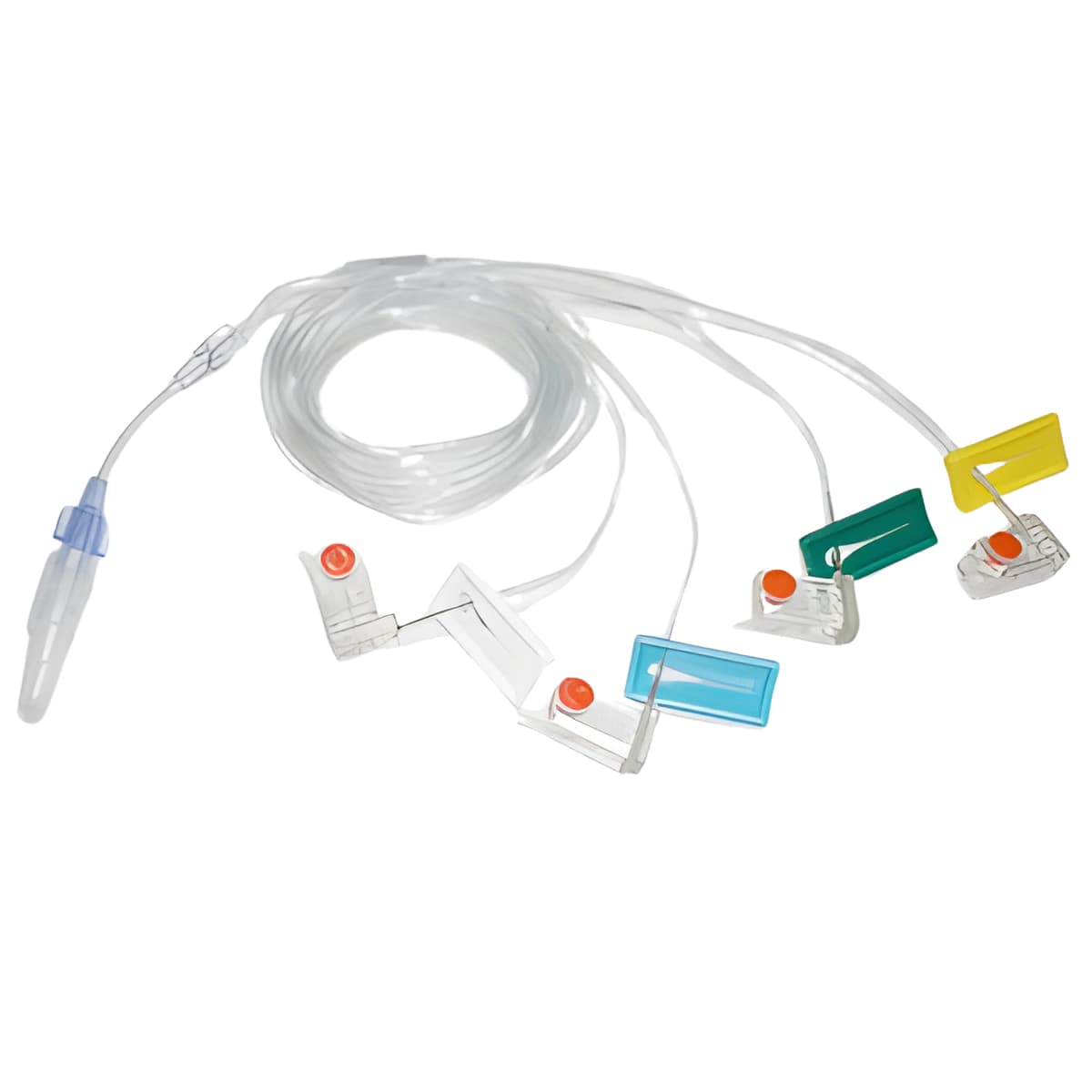

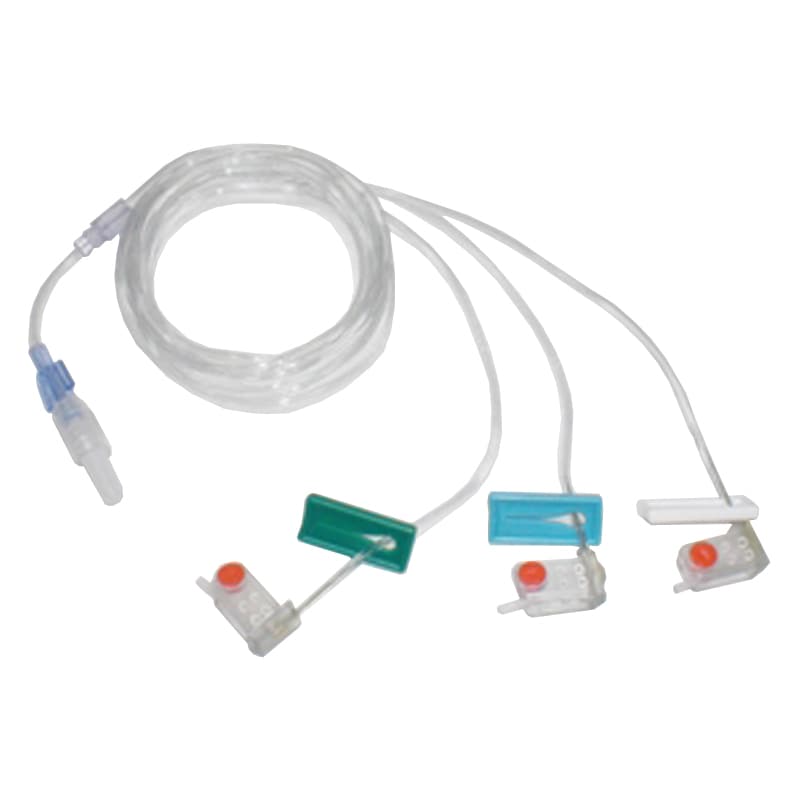

Alimed Multi-Lumen Subcutaneous Infusion Set with Winged Hub Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
Alimed Multi-Lumen Subcutaneous Infusion Set With Winged Hub
Product Configuration Options
Starts From
Quantity
Product Features and Policies

FSA/HSA Eligible
Product Features and Policies

FSA/HSA Eligible
All-Med's Safety Sub Q Infusion Sets is patent-pending subcutaneous right-angle needle infusion sets are specifically designed and manufactured for the delivery of medication to the subcutaneous tissue.
The unique Single, Bifurcated, Trifurcated, Quadfurcated, and 5-leg sets for Safety Sub Q and other therapies are convenient to use, associated with less trauma, and offer an opportunity to improve compliance cost-effectively through the use of a dedicated infusion set.
With a discard adapter, sets can be used with a wide range of pumps, including:
- Graseby Medical
- AITECS
- Baxa
Features and Benefits
- Sets without transparent dressing are available.
- Central positioning of needle improves stability and comfort.
- Colored slide clamps for easy identification for pull pack on each site.
- Integrated wings on needle lay flat against patient's skin promoting needle stability for insertion.
- Variety of needle lengths and gauges are available: 24 and 27 gauge; 6mm, 9mm, 12mm, and 14mm.
- Easier needle insertion and flexible wings for optimum viewing of insertion site minimize the possibility of needle sticks.
Model No | Gauge | Needle Length | Priming Volume | Tubing Length |
MCQU3609-SS | 27 Gauge X 4 | 9 mm | 0.80 mL Priming Volume | 36 Inch Tubing |
MCQU360924G-SS | 24 Gauge X 4 | 9 mm | 0.80 mL Priming Volume | 36 Inch Tubing |
MCTI3606-SS | 27 Gauge X 3 | 6 mm | 0.65 mL Priming Volume | 36 Inch Tubing |
MCTI3609-SS | 27 Gauge X 3 | 9 mm | 0.65 mL Priming Volume | 36 Inch Tubing |
MC5L3612-SS | 27 Gauge X 5 | 12 mm | 1.25 mL Priming Volume | 36 Inch Tubing |
MCQU361224G-SS | 24 Gauge X 4 | 12 mm | 0.80 mL Priming Volume | 36 Inch Tubing |
MCQU3606-SS | 27 Gauge X 4 | 6 mm | 0.80 mL Priming Volume | 36 Inch Tubing |
MCBI3609-SS | 27 Gauge X 2 | 9 mm | 0.50 mL Priming Volume | 36 Inch Tubing |
MCBI360924G-SS | 24 Gauge X 2 | 9 mm | 0.50 mL Priming Volume | 36 Inch Tubing |
MC6L3606-SS | 27 Gauge X 6 | 6 mm | 1.50 mL Priming Volume | 36 Inch Tubing |
MC6L361224G-SS | 24 Gauge X 6 | 12 mm | 1.50 mL Priming Volume | 36 Inch Tubing |
MC6L3609-SS | 27 Gauge X 6 | 9 mm | 1.50 mL Priming Volume | 36 Inch Tubing |
MCBI3606-SS | 27 Gauge X 2 | 6 mm | 0.50 mL Priming Volume | 36 Inch Tubing |
MCTI361224G-SS | 24 Gauge X 3 | 12 mm | 0.65 mL Priming Volume | 24 Inch Tubing |
MC5L3609-SS | 27 Gauge X 5 | 9 mm | 1.25 mL Priming Volume | 36 Inch Tubing |
MCBI361224G-SS | 24 Gauge X 2 | 12 mm | 0.50 mL Priming Volume | 36 Inch Tubing |
MCBI3612-SS | 27 Gauge X 2 | 12 mm | 0.50 mL Priming Volume | 36 Inch Tubing |
MCQU3612-SS | 27 Gauge X 4 | 12 mm | 0.80 mL Priming Volume | 36 Inch Tubing |
Sizing
Brand | Alimed Multi-Lumen |
Manufacturer | All-Med |
Application | Subcutaneous Infusion Set |
Hub Type | Winged Hub |
Needle Material | Stainless Steel Needle |
Port Type | Without Port |
Safety Feature | Safety Needle |
Sterility | Sterile |
Warranty
- The product warranty is applicable as per the terms and conditions provided by the product manufacturer.
Please call us for specific details.
Return
- No returns will be accepted after 30 days from the date of shipment.
- All returns are subject to a restocking fee as per manufacturers terms and conditions.
- All returns must have an RGA number (Returned Goods Authorization), unauthorized returns will not be accepted.
- We do not guarantee fulfillment of any desired purpose or product suitability to the user and this will not be considered as a valid reason for return.
- The products must be new, unused condition, not tampered with, in original packaging and returned at the customers expense in the original packaging.
- If your return is not due to any manufacturing defect then the original shipping cost will be deducted from the total refund.
- Hygiene, bath and toilet items cannot be returned once opened or used.
- Standard manufacturer terms and conditions apply for return policy of this product.
Please call us for specific details.
