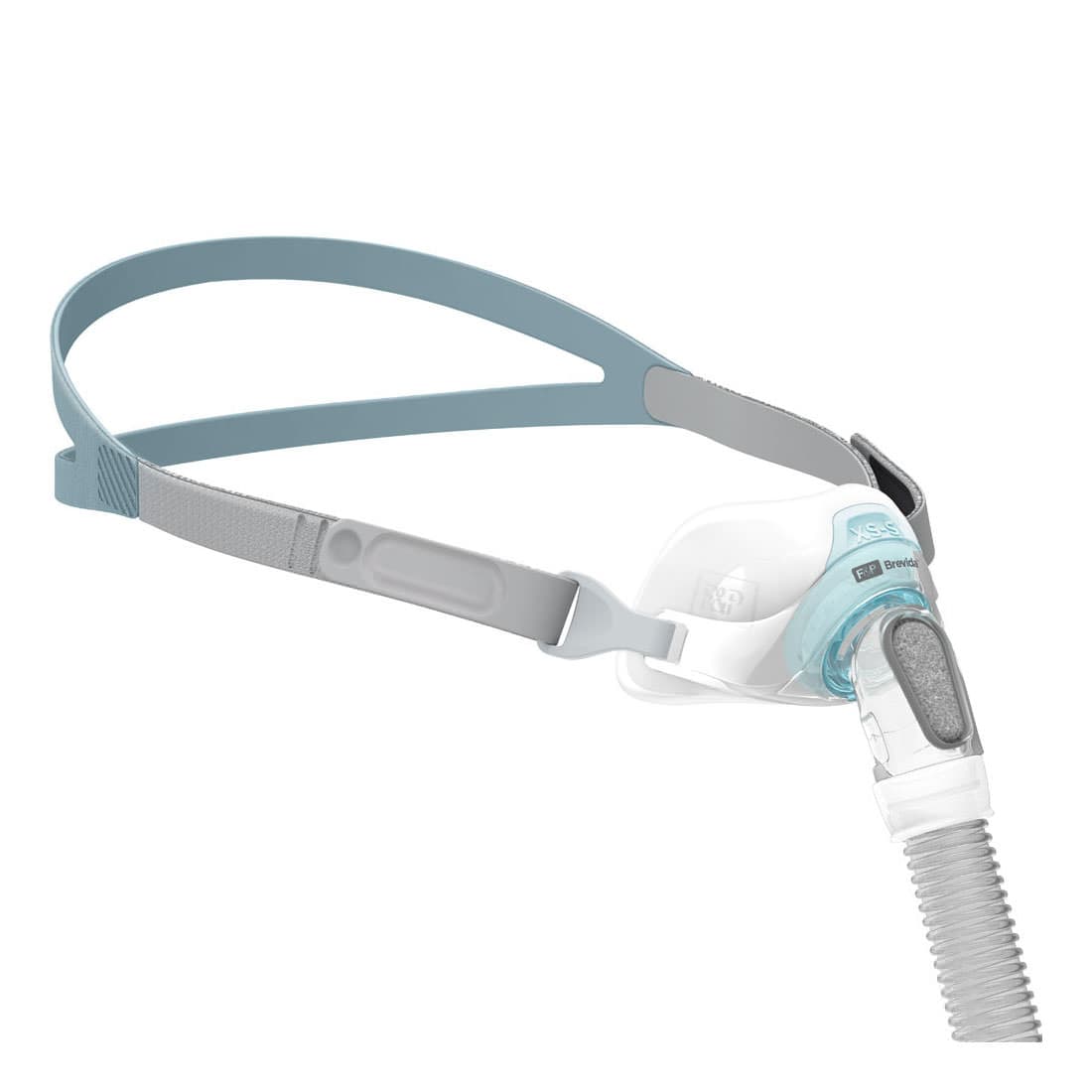

Fisher and Paykel Brevida Nasal Pillow Mask is comfortable. Developed from extensive patient-centred research, F&P Brevida features simple, adjustable headgear and the innovative AirPillow seal for a gentle, effective seal. The F&P Brevida Nasal Pillows Mask is intended to be used by individuals who have been diagnosed by a physician as requiring CPAP or Bi-Level therapy. The F&P Brevida Nasal Pillows Mask is intended for single patient adult (≥66 lbs (30 kg)) use in the home and for multiple patient adult use in the hospital or other clinical setting where proper disinfection of the device can occur between patient uses.

Features

• AirPillow Seal - The innovative AirPillow inflates to form a gentle and effective seal.
• Adjustable Headgear - Adjustable headgear which is designed to stay in place during sleep.
• Washable Diffuser - The diffuser, which reduces noise and air draft, is washable and durable.
• VisiBlue - Blue highlights incorporated into the mask key components assist patients with daily mask use.

Fitting Instructions

• 1. Remove all packaging before using your mask.
• 2. Hold the Silicone Seal away from your nose, use your fingers to carefully spread open the soft side wings of your Silicone Seal and then guide the two openings into your nostrils.
• 3. Hold the Mask Frame in position with one hand and pull the Headgear over your head with the other hand, positioning the straps above the ears.
• 4. Gently tighten or loosen the Headgear straps on the sides of the Headgear until you achieve a comfortable seal.

Cleaning Instructions (excluding mask and diffuser)

• 1. Hand-wash your mask in soap dissolved in lukewarm water. Do not soak for more than 10 minutes.
• 2. Rinse thoroughly with fresh water, ensuring that all soap residue has been removed.
• 3. Inspect all parts to ensure they are visually clean. If necessary, repeat the cleaning steps until all parts are visually clean.
• 4. Leave all parts to dry out of direct sunlight before reassembling.

Mask Assembling Instruction

• 1. Push the Silicone Seal onto the Mask Frame in the orientation shown in the below image until a confirmation click is heard.
• 2. Attach the Headgear Clips on the Headgear to the Mask Frame.
• 3. Attach the Diffuser to the Elbow.
• 4. Push the Swivel onto the Mask tube.
