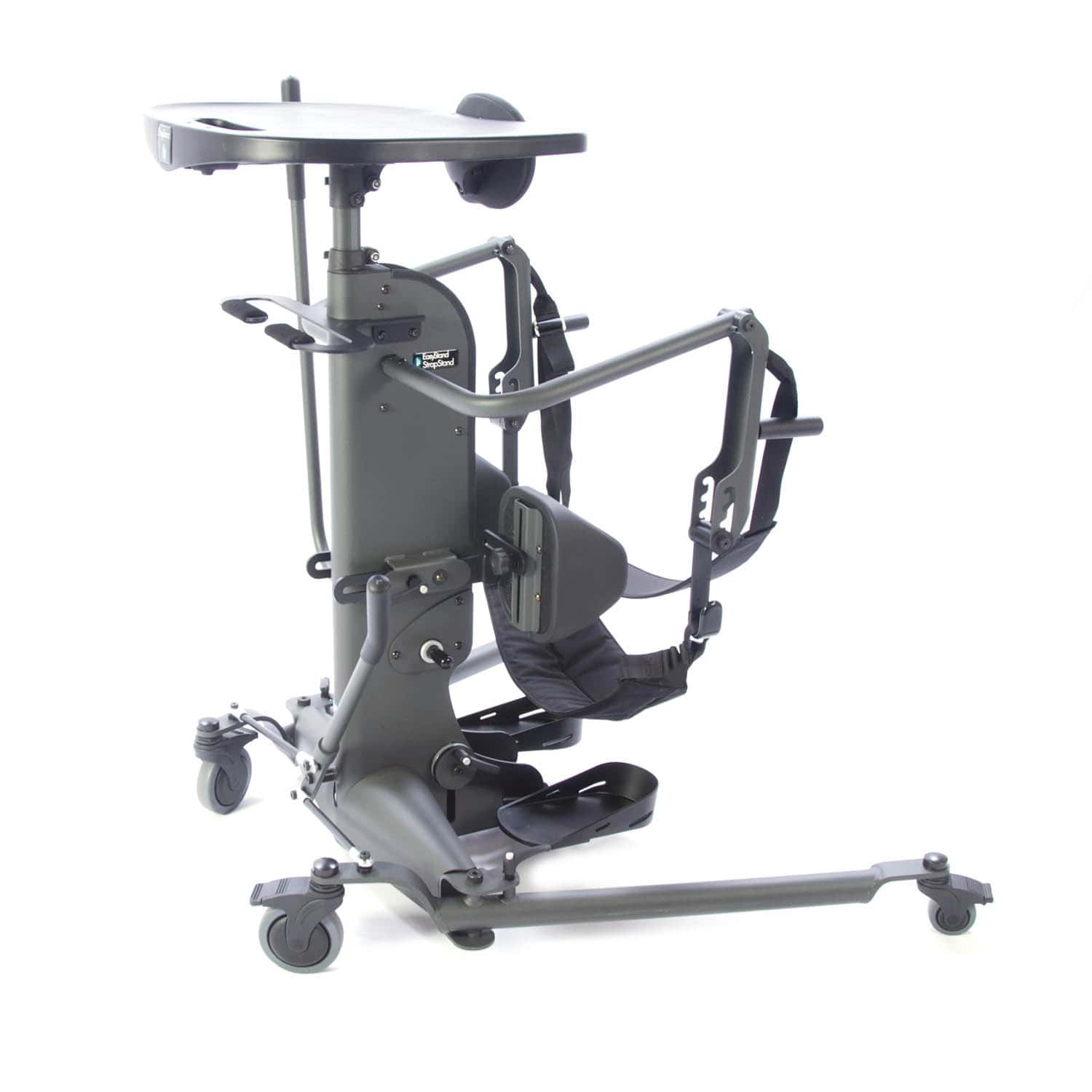

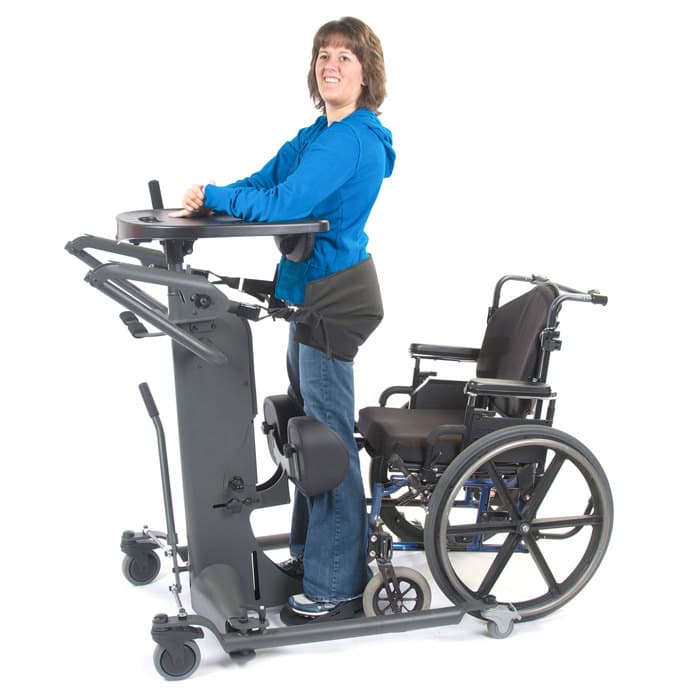

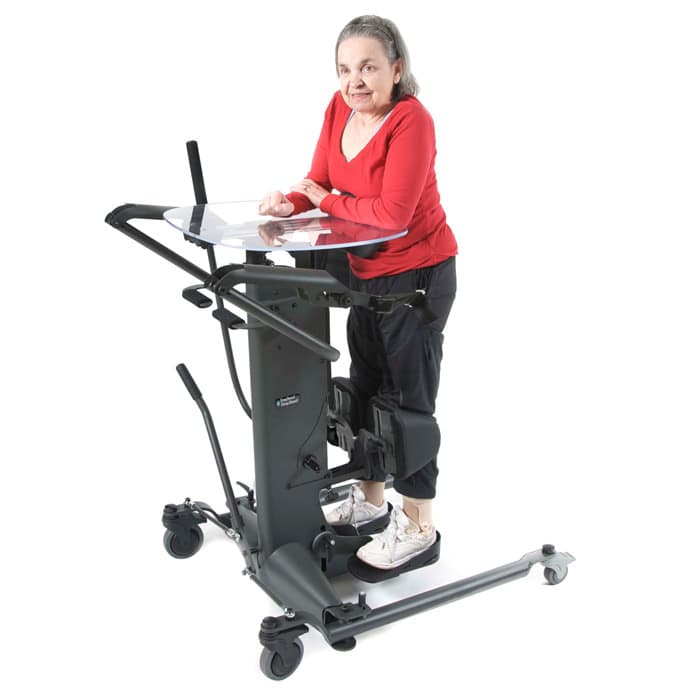

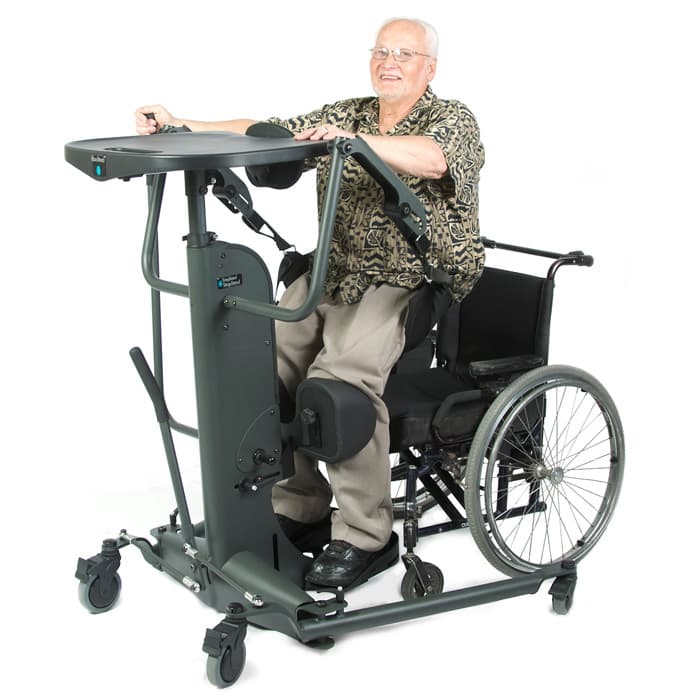

EasyStand StrapStand sit to stand stander |
Height range |
5' - 6'5" |
Weight limit |
350 lbs |
Kneepad height range (Footplate to
top of pad) |
18" - 21" |
Kneepad width (Center to center) |
9" |
Kneepad depth range (From back of
heel) |
6" - 9.5" |
Front pad depth range (From back of
heel) |
2" - 12.5" |
Front pad height range (From
footplate to center of pad) |
40" - 56" |
Inside width/wheelchair access |
22.75" |
Locking caster diameter |
3" |
Standard footprint |
34" x 28" |
Weight of basic unit |
125 lbs |
Lifting strap - Small |
9" x 25" |
Lifting strap - Large |
12" x 28" |
Lifting strap - Extra large |
14" x 32" |
Adjustable lifting strap - Small |
10" x 26" |
Adjustable lifting strap - Large |
12" x 29" |
Adjustable lifting strap - Extra
large |
14" x 32" |
Range of adjustable lifting straps |
0" - 8" |
Tray height (from footplate) subtract
1" or 2.5cm for acrylic |
42" - 58" |
Tray size (Molded or acrylic) |
21" x 24" |
Swing-out legs footprint |
30"W x 38.5"L |
Swing-out legs inside access
(Wheelchair front width up to) |
38" |
Actuator handle extension |
Adds 7" |
Angle adjustable tray range |
0° - 35° |
Upper body support strap pad size |
5.5" x 24" |
Upper body support strap (Adjustment
range) |
33" - 70" |
Foot straps (Range over arch) |
7" - 17" |
Secure foot option (Range over arch) |
7" - 17" |
XL footplate-placement area (Each
foot) |
7" - 14" |
Independent knee pad depth range
(From back of heel) |
3.5" - 8" |
Independent knee pad height range
(From footplate) |
17" - 22.5" |
Independent kneepad size |
7"W x 9"H |
Independent kneepad roho insert size |
5"W x 7.5"H |
Multi-adjustable footplates (Height
from floor) |
1" - 5" |
Multi-adjustable footplates toe-out
adjustment |
Neutral to +15° |
Multi-adjustable footplates plantar/dorsiflexion
adjustment |
-20°/+20° |
