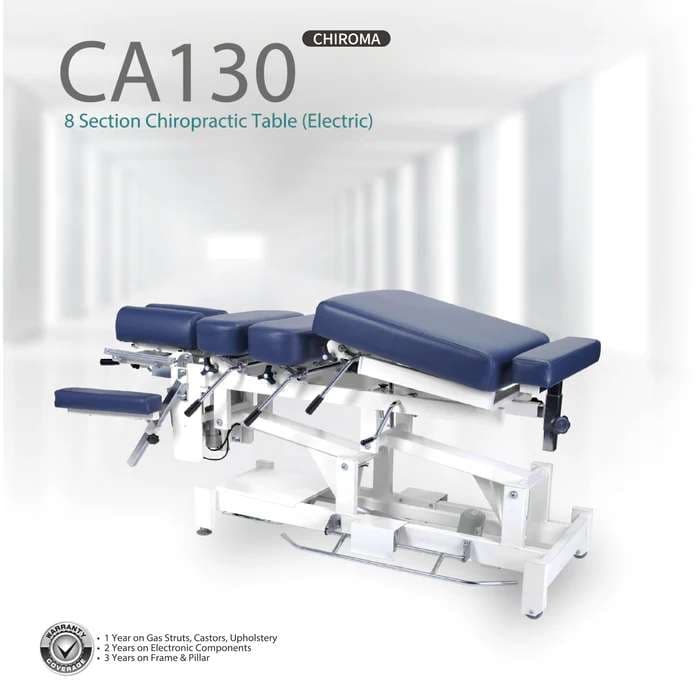

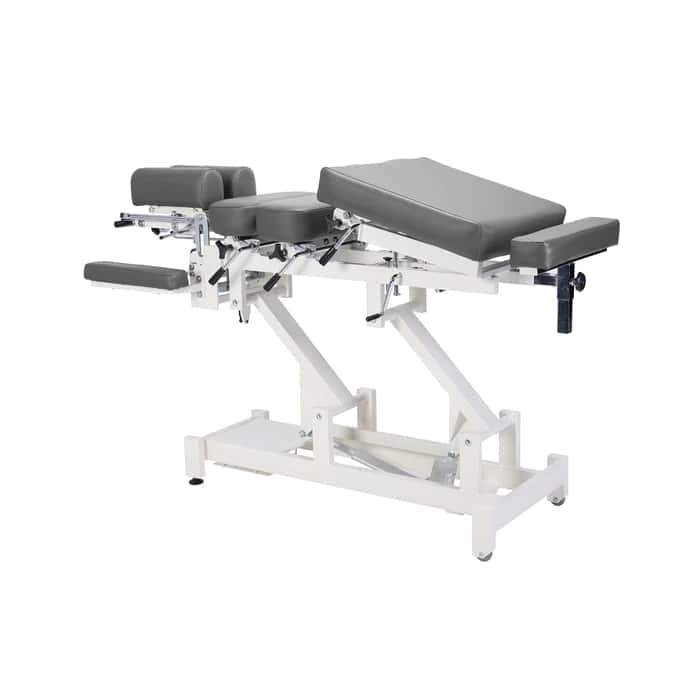

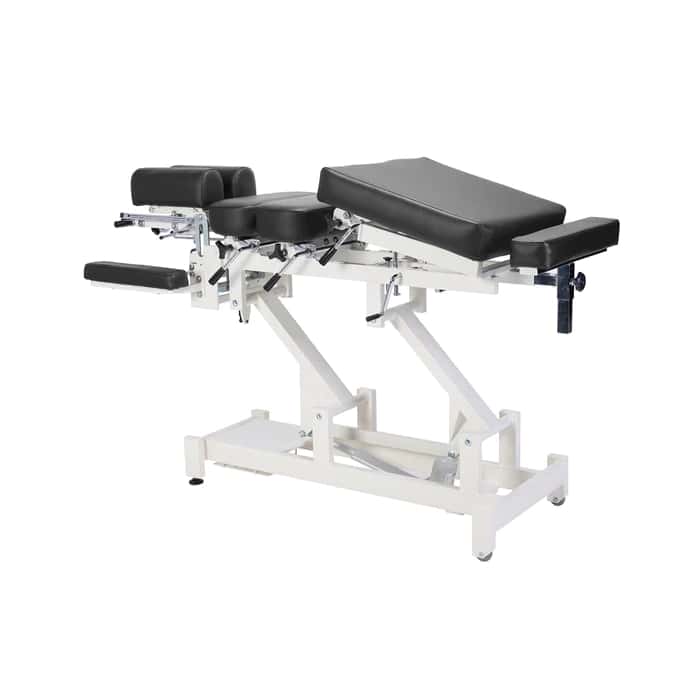

Everyway4all CA130 8-Section Chiropractic table provides professional chiropractor with the simplicity of use. The main emphasis of chiropractic is on manual and manipulative therapy for the treatment of joint dysfunctions, especially those of the spinal column, CHIROMA serves as a "Force Extension" as well as "Force Absorbent" platform for chiropractors to perform various tentative tasks without the risks of collateral damage to the patient.
This is an 8 Section Chiropractic Table (Electric) with 4 Sections of Adjustable Tension-Drop at the (1) Head (2) Thorax (3) Abdomen Sections.
New features:

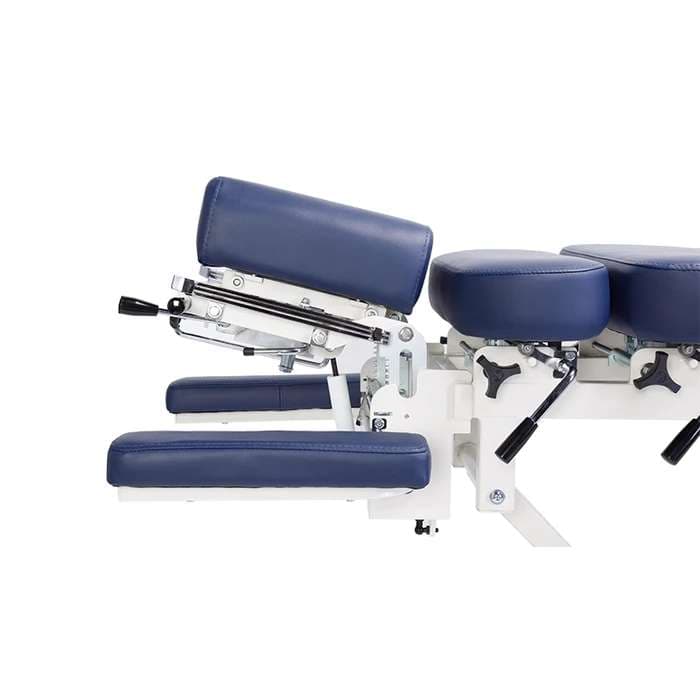

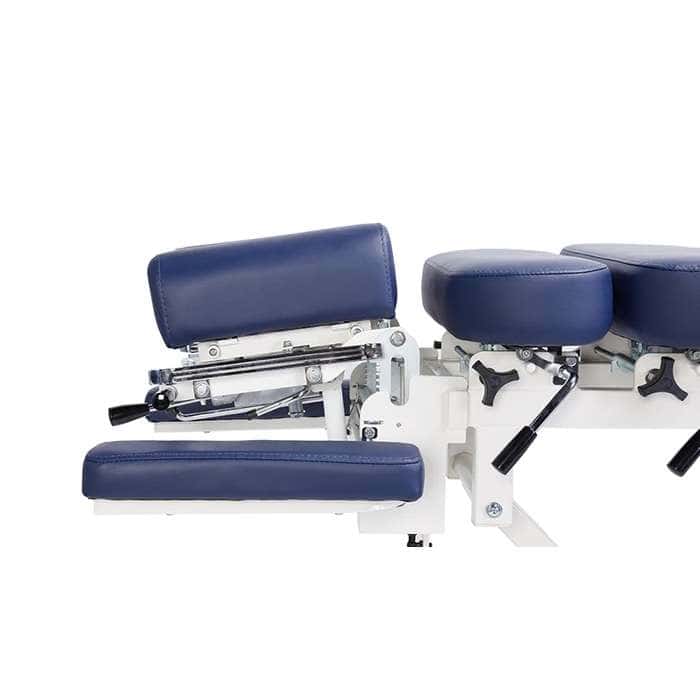

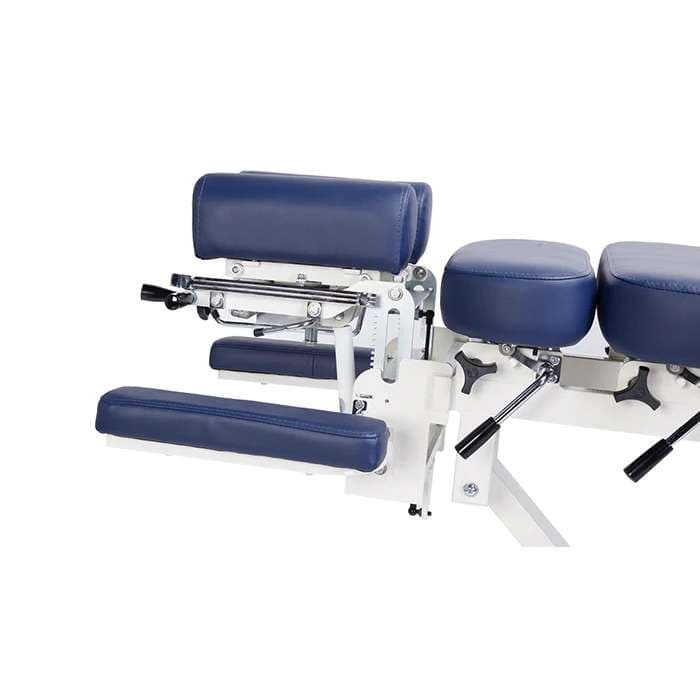

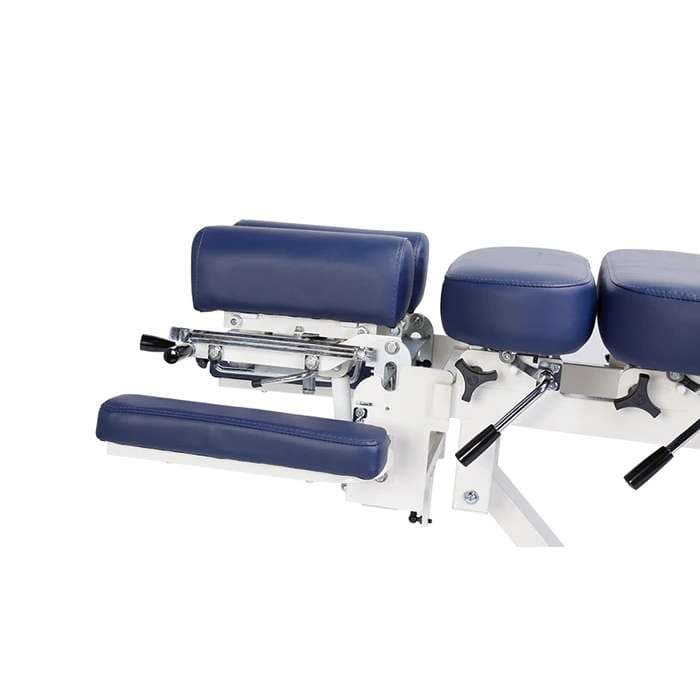

2 x Motorized Actuators" are implemented in the Head Section for Height & Tilting Adjustment.
A Joystick" is also implemented at the Head Section for Height & Tilting Adjustment.
CA130 Chiroma features:
The adjustable tension drop can be initiated at all sections of our body:
Main features:
Everyway4all CA130 8-Section Chiropractic table | |
Minimum height | 21.26" |
Maximum height | 38.58" |
Table Top Width | 23.62" |
Head Section Length | 12.20" |
Arm Rest Length | 16.14" |
Thoracic Section Length | 7.48" |
Abdominal Section Length | 8.66" |
Lumbar & Leg Section Length | 22.83" |
Ankle Section Length | 4.72" |
Total Length | 63" |
Head Tilt Angles | -15° to +15° |
Head Elevation | 3.93" |
Head-Drop Travel Range | 8.66" |
Thoracic-Drop Travel Range | 9.84" |
Abdominal-Drop Travel Range | 9.84" |
Lumbar & Leg- Drop Travel Range | 6.69" |
Lumbar & Leg Tilt / Lift Angle | 0° to 15° |
Ankle Section Extension Range | 11.02" |
Lift Mechanism | Electric |
Breathing Hole/Plug | N/A |
Hauler Wheel (Fixed at Leg End) | 2 |
Weight Rating (Max. Load) | 496. lbs. |
Net Weight | 93.5 kg |
Gross Weight | 103.5 kg |
Electrical data | |
Control box input voltage & rating | 100~240VAC, 50/60Hz, 2A |
Control box output voltage | DC 32V, 80VA |
Actuator input voltage | DC 24V |
Duty cycle | Max. 10% 2min. ON / 18min. OFF |
Max. load | Push 8000N |
Max. current: | 6A |
CERTIFIED TO AAMI / CSA / IEC / EN STD | |
AAMI ES 60601-1, CSA-C22.2 NO. 60601-1 | |
IEC 60601-1, EN 60601-1 | |
The electrical components used are approved by IEC 60601-1 |
The manufacturer provides a limited warranty against defect in workmanship and materials according to the schedule below:
Please call us for Specific Details.
Delivery Inspection Policy:
We encourage you to inspect all shipments immediately upon receipt. If the shipment is damaged, you have the option to refuse the delivery. Once the delivery is accepted, we are unable to assume responsibility for any damages.
We are committed to your satisfaction. Please feel free to contact us for any specific details or assistance with your return.
