Ki Mobility Axiom AS & ASP Cushion - Skin Protection & Pressure Relief
Product Information

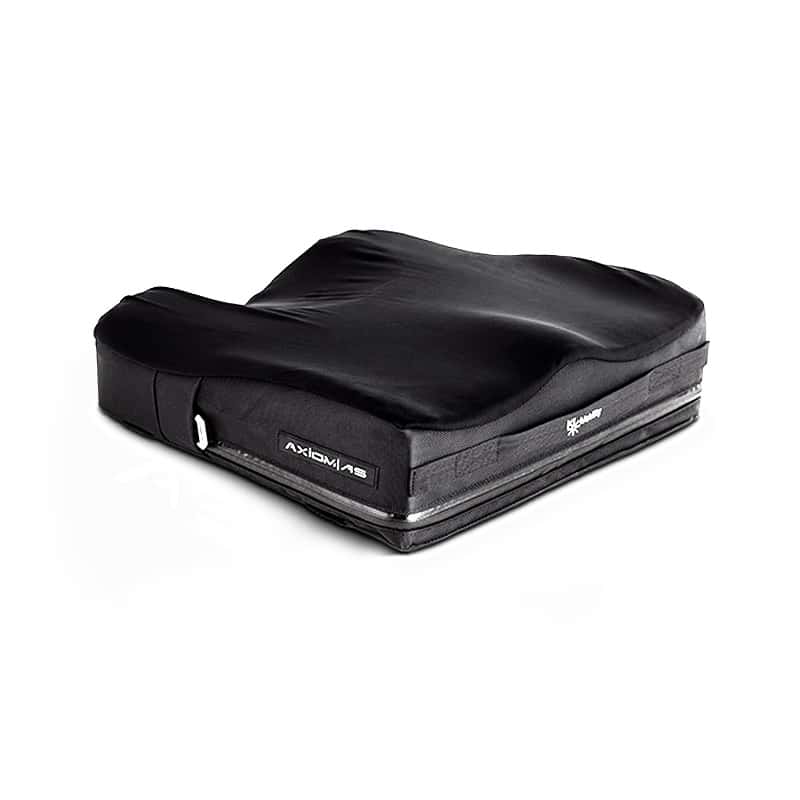

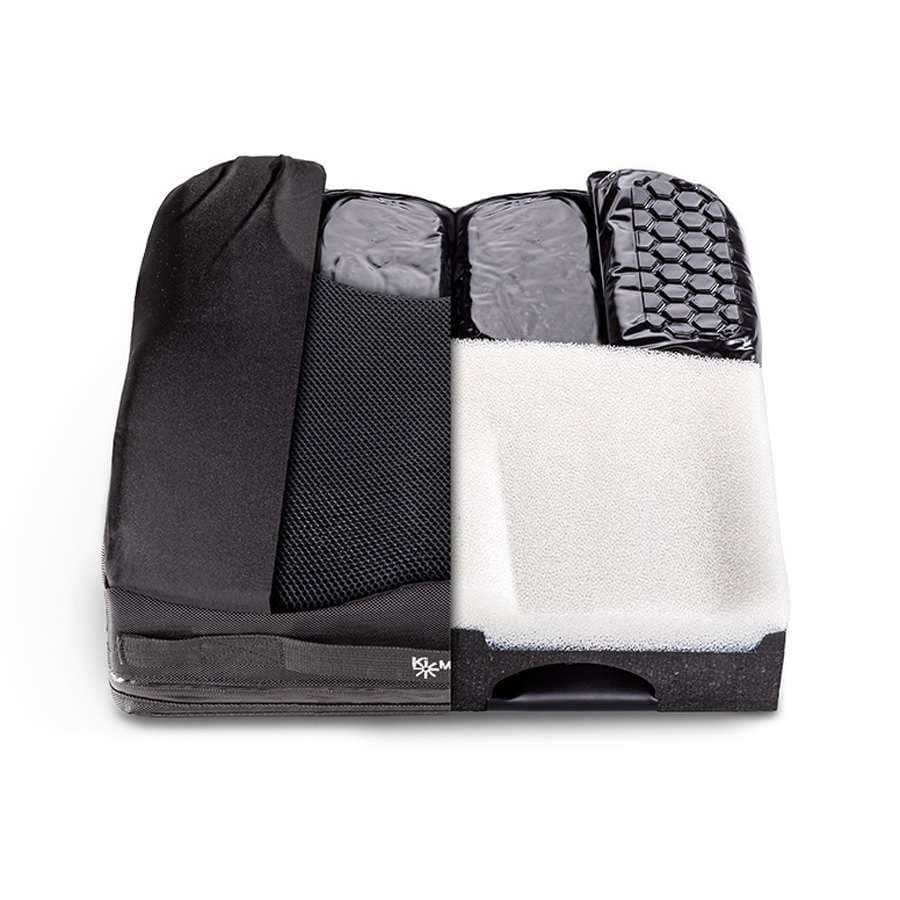

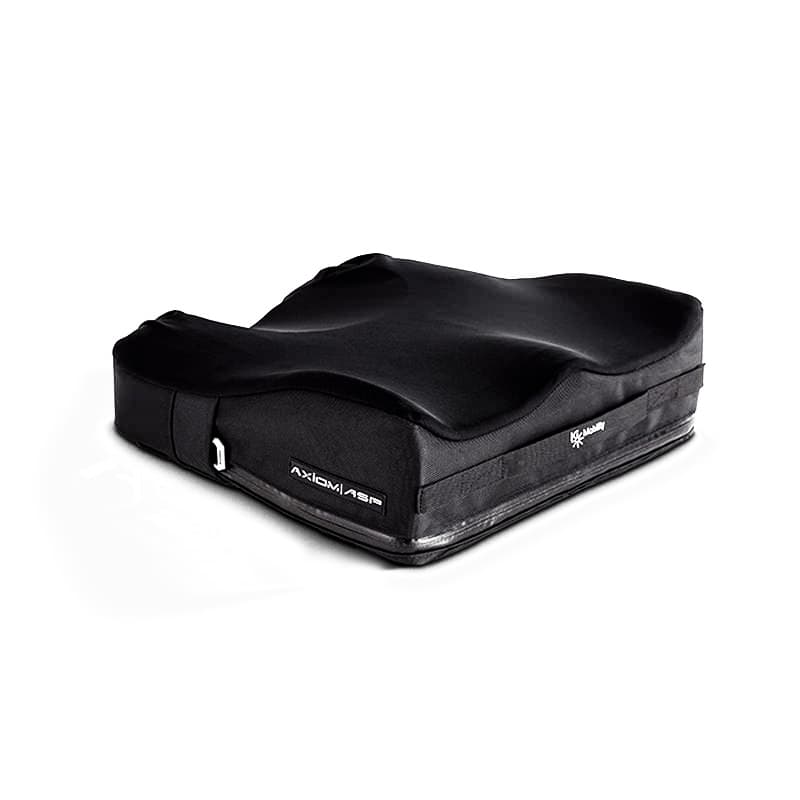

Ki Mobility Axiom AS & ASP Wheelchair Cushion Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
Ki Mobility Axiom AS & ASP Cushion
Loyalty Points
You will earn up to 438 points on this order

Loyalty Points
You will earn up to 438 points on this order
Product Features and Benefits
.png)
Free Shipping
Quantity
Ki Mobility Axiom AS & ASP Wheelchair Cushion Purchase Options
Product Features and Policies

Made in USA

Hygiene Product
Product Features and Policies

Made in USA

Hygiene Product
Ki Mobility Axiom AS & ASP Cushion features a patented self-adjusting fluid system that makes fitting and adjustment simple. It automatically adjusts the fluid volume based on the rider's weight and physical attributes to ensure appropriate loading. The cushion comes in two models: adjustable skin protection (AS) and adjustable skin protection and positioning (ASP).
The adjustable skin protection and positioning (ASP) cushion has a deep contour shape that provides for better positioning while seated and adapts to the curve of the user's body. The abductor and adductor components provide troughing that can be used to position the lower extremities.

Features of Axiom AS & ASP Wheelchair Cushion:

Lightweight:
- Axiom's hydrolite is extremely light, eliminating the "weight penalty" of other fluid cushion.
- Because it is less temperature sensitive, the fluid functions consistently regardless of how hot or cold the weather is.

Patented Design:
- Cover strain is eliminated by a pleated 4-way super stretch lycra cover.
- For shear reduction, bilateral Ischial Fluid implants with more mobile fluid.
- Trochanteric fluid implants that are independent and have a stiffer fluid for stability.
- Air flow is provided by a microclimatic spacer cloth layer over a reticulated foam comfort layer.
- Individual fluid volume control is possible with the Structural Foam Base with Fluid Reservoir Channels.
- The cushion's vents allow it to respond to changes in ambient pressure.

Superior Microclimate:
- To allow air to move, the cushion foundation has a dense layer of reticulated foam under a layer of spacer fabric.
- The closed-cell foam base is constructed with pathways that allow moisture to move through and away from the body, keeping the skin interface cool and dry.

Optimized Pressure Distribution and Maximum Stability:
- The femurs, trochanters, and ischia can all be loaded individually to the cushion.
- The fluid beneath the ischia has been designed to minimise shear strain, while the trochanteric bladders are filled with a stiffer Hydrolite to provide stability when moving and reaching.

Anthropometrics:
- Human data from studies is used to design the shape of the cushion so they can properly fit the broad range of users.

Pre-Contour Shape:
- The cushion has been pre-contoured to make loading the trochanters easier, reduce ischial loading, and increase lateral stability.

Surface Tension Reduction:
- The ischial bladders are located right beneath the cover's outer layer.
- Surface tension is greatly reduced by using the super 4-way stretch Lycra outer cover material, resulting in better immersion.
Specifications
Specifications
Ki Mobility Axiom AS & ASP Cushion | ||
Axiom AS | Axiom ASP | |
Width | 14" - 22" | 14" - 22" |
Depth | 14" - 22" | 14" - 22" |
Height (Leg troughs) | 3.8" | 3.8" |
Height (Overall) | 4.5" | 5.5" |
Weight | 3.3 lbs. | 3.3 lbs. |
Weight Capacity | 350 lbs. | 350 lbs. |
HCPCS Code | E2622/3 | E2624/5 |
Resources
Axiom AS and ASP cushion fitting video
Warranty
Warranty
The manufacturer warrants this product against defects in material & workmanship according to the schedule below:
- 24 Months Limited Warranty: Ki Mobility warrants the cushion to be free from defects in materials and workmanship for a period of 24 months.
- 6 Months Limited Warranty: Ki Mobility warrants the removable cushion cover to be free from defects in materials and workmanship for a period of 6 months.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale.
Warranty limitations/violations:
- This warranty applies in the USA only.
- Damage from exceeding the weight limit.
- If the original cushion serial number tag is removed or altered.
- If the original product has been modified from its original condition.
- Damage resulting from neglect, misuse or from improper installation or repair.
- This warranty is not transferable and only applies to the first consumer purchase of this product.
Standard manufacturer Terms and Conditions are applicable for Warranty of this product.
Please call us for specific details.
Return
Return
- Items must be returned in their unopened original packaging at the customer's expense.
- If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
- All returns require a Returned Goods Authorization (RGA) number. You can request an RGA by contacting us. Unauthorized returns will not be accepted.
- Standard manufacturer terms & conditions apply to this product's return policy.
- Non-Configured Products: These are any products that were not customized to your order (e.g., unpainted parts, accessories, standard seating). You can return them within 30 days of delivery with no restocking fee, even if due to customer error. However, original shipping costs and credit card/PayPal processing fees may be deducted from your refund. No restocking fee
- Configured Products: These are products that are custom-built to your order. There is a 40% restocking fee on all returns of configured products.
- This is a hygiene item. It can only be returned if unopened and in its original packaging. Approved return requests will be accepted within 30 days of delivery.
- Custom fabricated products may not be returned.
Please call us for specific details.
FAQs
FAQs
The 4-way stretch Lycra cover reduces surface tension for better immersion, while a spacer fabric and foam layers allow airflow to keep the skin cooler and drier.
The cushion comes in widths and depths from 14" to 22", making it adaptable to a wide range of wheelchair frames.
The bilateral ischial fluid inserts are designed to limit shear strain, which helps protect the skin during movement.
The AS has an overall height of 4.5", while the ASP is slightly taller at 5.5" to accommodate its deeper contour for positioning.
Additional Information
