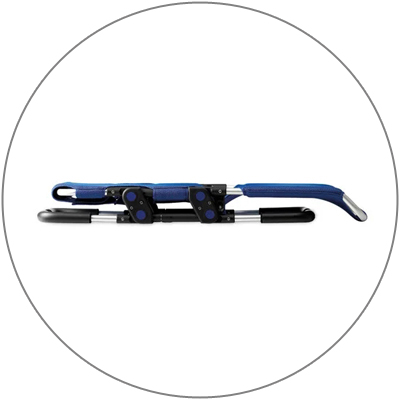

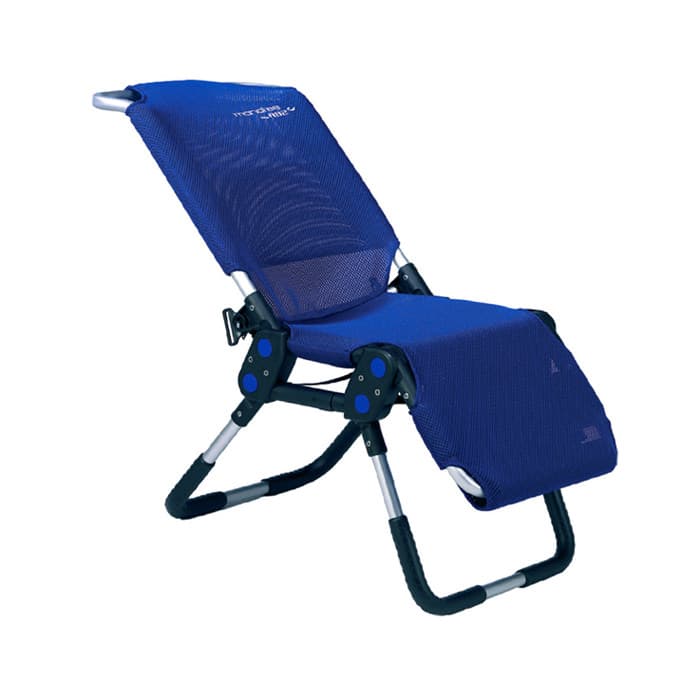

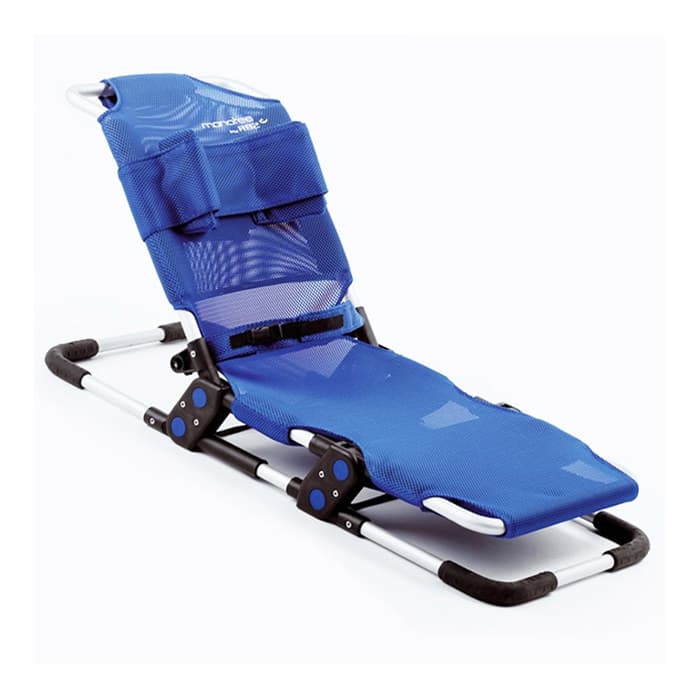

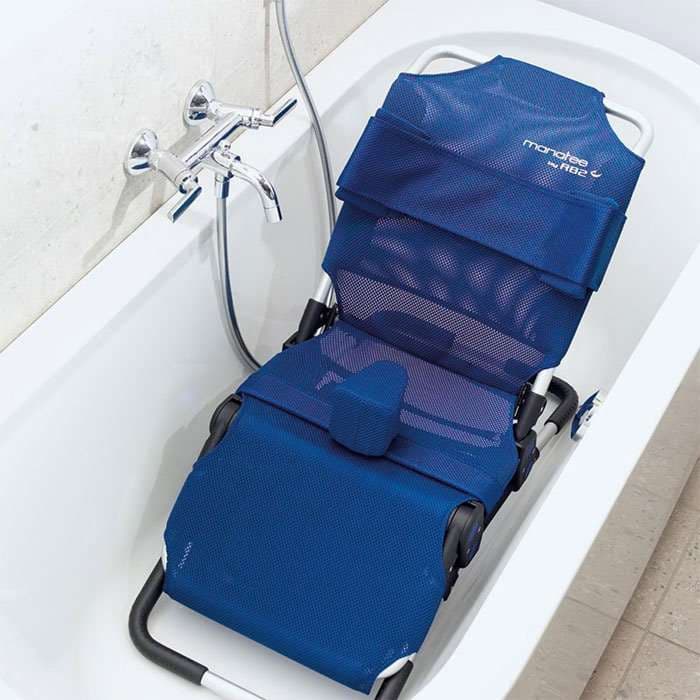

R82 Manatee bathing chair can be used in either a sitting or a supine posture. Because the seat depth can be modified, the bathing chair can "grow" with the child and be used for many years. The modifications and accessories are rationally placed, allowing the caregiver to work in a more comfortable environment. The Manatee is extremely light and folds up conveniently for storage or transportation. The Manatee is a bathing chair that can be used by children from the age of 1 year. Because no two children are alike, it is critical to utilize the measuring chart to determine the proper size for your child.
R82 Manatee bath seat comes standard with:
Waist/Hip belt
Size 0, 1, 2 and 3
Head/Lateral support
Red or Blue soft nylon cover
R82 Manatee bath seat features:

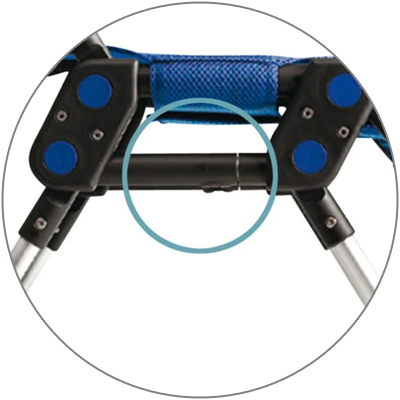

Depth adjustable seat: Provides depth adjustment for growth

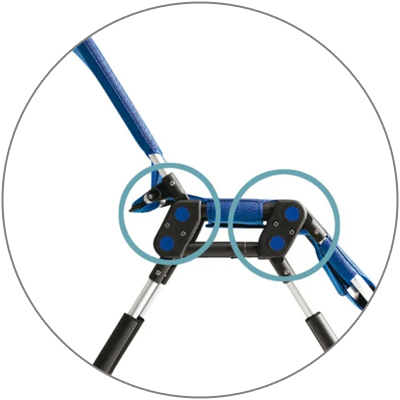

Adjustable back and leg rest: Allows adjustments of the back and of the lower leg support with a simple pull of a strap or push of a button

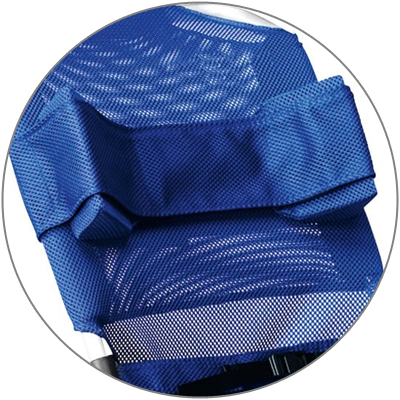

Head cushion/lateral support: Provides support and comfort for bathing children. Cushions can be used for head or torso support
Adjustable waist strap: Supports the child safely in the Manatee
Sizing
R82 Manatee bath seat
Size 0
Size 1
Size 2
Size 3
Effective seat width
13"
13"
13"
15¾"
Effective seat depth
8¾"-9¾"
11¾"-14½"
15¼"-18"
15¾"-18½"
Backrest height
17"
17"
22¾"
25¼"
Lower leg length
11"
11"
13¾"
13¾"
Seat surface height at front edge
5½"-17"
5½"-17"
5½"-17"
5½"-17"
Overall width
16½"
16½"
16½"
19¼"
Folded length
40½"-43¼"
43"-46"
53½"-56¼"
56¾"-59½"
Folded height
5"
5"
5"
5"
Mass device
12.1 lbs.
12.1 lbs.
13.2 lbs.
15.4 lbs.
Maximum user mass
110.2 lbs.
110.2 lbs.
165.3 lbs.
165.3 lbs.
Maximum rated load
126.7 lbs.
126.7 lbs.
182.9 lbs.
185.1 lbs.
Shower frame - P/N 882100
Bath tub frame - P/N 882101
Frame width
23¼"
17¼"
Frame Length
38½"
39"-43¾"
Height
N/A
10½"
Height, minimum
15"
N/A
Height , minimum w/chair
30"
N/A
Height middle
17¼"
N/A
Height middle, w/chair
33"
N/A
Height maximum
19"
N/A
Height maximum, w/chair
35½"
N/A
Frame height, folded
8¼"
N/A
Mass device
17.6 lbs.
4.4 lbs.
Maximum load
165.3 lbs.
165.3 lbs.
Maximum rated load
187.3 lbs.
174.1 lbs.
Required width of corridor
59"
N/A
Minimum turning diameter
118"
N/A
Warranty
R82 Inc. warrants all of its products against defects in material & workmanship according to the schedule below:
Five Years Warranty: Metal Frame Work
One Year Warranty:
All Other Components
30 Days Warranty:
All Fabrics, Tires & Tubes
Manufacturer will not warrant parts damaged by improper installation and/or repair on the part of the individual owner, or normal wear and tear.
Manufacturer does not warrant parts damaged by neglect, accident or misuse, nor parts altered or serviced by an agency not authorized by R82 Inc.
Standard Manufacturer Terms & Conditions Apply for Warranty of this Product.
Please call us for Specific Details.
Return
Unfortunately hygiene items cannot be returned once opened, due to health concerns.
Standard manufacturer terms & conditions are applicable for return policy of this product.
