SafeStep Huber Infusion Set Without Y-Site | Infusion Therapy
Product Information
SafeStep Huber Infusion Set without Y-Site Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
- SKU:
- BALH-0029-MI
- Brand:
- Bard Medical
- MPN:
- LH-0029
- GTIN:
- 00801741066207
SafeStep Huber Infusion Set Without Y-Site
Product Configuration Options
Starts From
Quantity
Product Features and Policies

FSA/HSA Eligible
Product Features and Policies

FSA/HSA Eligible

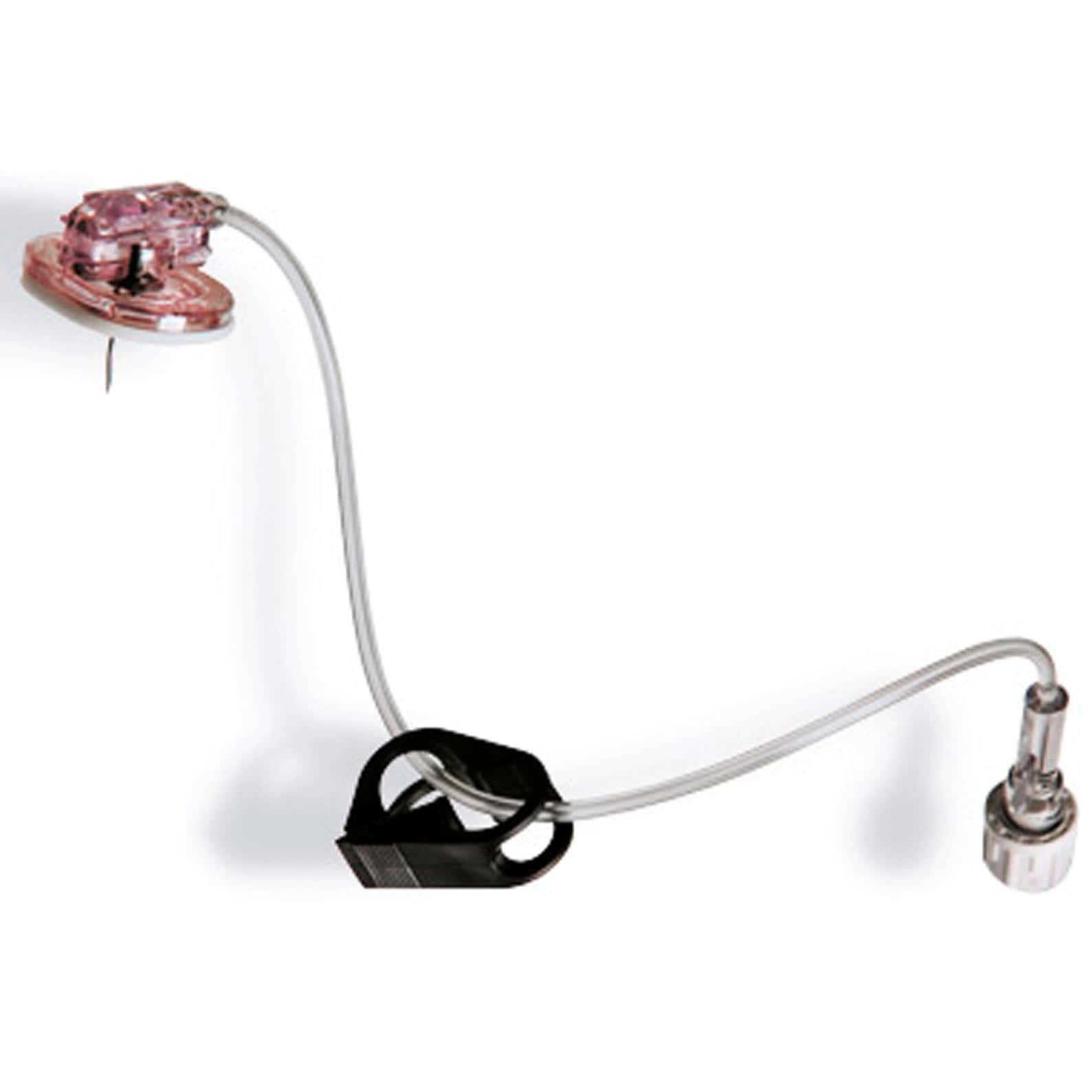

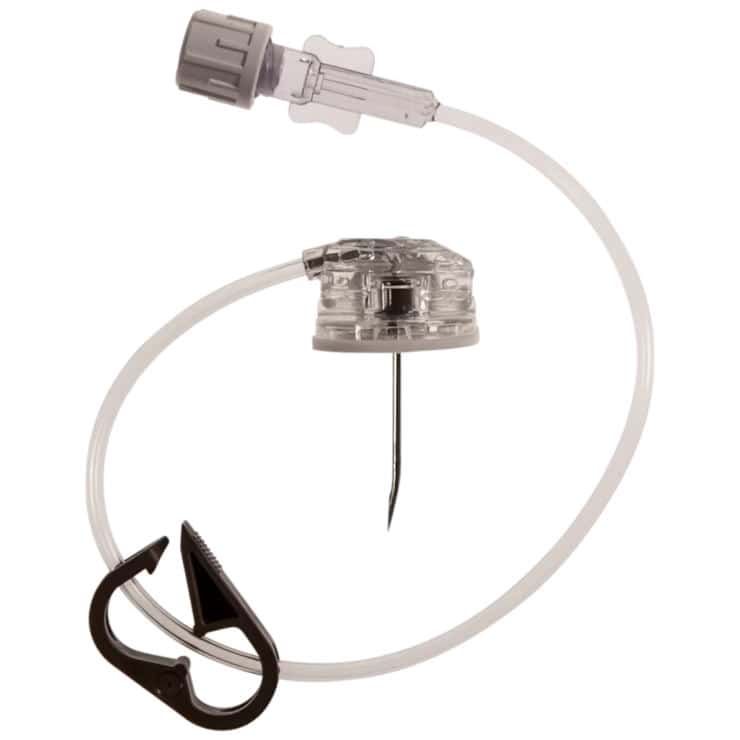

SafeStep Huber Needle Set is designed with the clinician and the patient in mind. The textured handle is easy to grasp and rotates to enable maneuvering and positioning of tubing to enable comfortable and proper site dressing. Also, the small footprint helps minimize dressing materials while the clear plastic base allows clinicians to view and inspect the insertion site throughout the course of therapy.
The Surecan Safety Huber Needle is intended to provide implanted subcutaneous port access, used in conjunction with IV administration of chemotherapy and other injectable drugs, and/or to withdraw blood. Surecan Safety Huber Needle consists of a right angle non-coring Huber needle with a passive safety mechanism clip, hub grip, base plate, DEHP-free extension set with an on-off clamp, and a color-coded female luer lock connector.
Features
- Wingless design.
- Low Profile (0.550").
- Dual lumen port adaptable.
- The padded footprint for comfort.
- Priming Volume: 0.3 mL Priming Volume.
- Rotating needle head for maneuvering and positioning.
- Small stable design ideal for patient comfort and easy to dress.
Model No: | Needle Length (mm) | Needle Length (in) | Needle Gauge Size | Minimum Gravity Flow Rate (mL/hr) |
LH-0029 | 19 | 0.75” | 22 | 312 |
LH-0030 | 25 | 1.0” | 22 | 312 |
LH-0031 | 19 | 0.75” | 20 | 960 |
LH-0032 | 25 | 1.0” | 20 | 960 |
LH-0033 | 19 | 0.75” | 19 | 1680 |
LH-0034 | 25 | 1.0” | 19 | 1680 |
LH-0035 | 12.7 | 0.5" | 22 | 312 |
LH-0036 | 38 | 1.5” | 22 | 312 |
LH-0037 | 12.7 | 0.5" | 20 | 960 |
LH-0038 | 38 | 1.5” | 20 | 960 |
LH-0039 | 12.7 | 0.5" | 19 | 1680 |
LH-0040 | 38 | 1.5” | 19 | 1680 |
Sizing
Brand | SafeStep |
Manufacturer | BD |
Application | Huber Infusion Set |
Connection Type | Female Luer Connector |
Hub Type | Low Profile Hub |
Needle Material | Stainless Steel |
Needle Style | Right Angle Needle |
Port Type | Without Port |
Priming Volume | 0.3 mL Priming Volume |
Safety Feature | Sliding Safety Needle |
Sterility | Sterile |
Tubing Type | DEHP-free PVC Tubing |
Sterilization | Ethylene Oxide |
Shelf Life | 3 Years |
Classification | IIa |
Latex | Latex-Free |
Y-Site | No |
NFC | No |
Siliconized | Yes |
Power Injectable | No |
