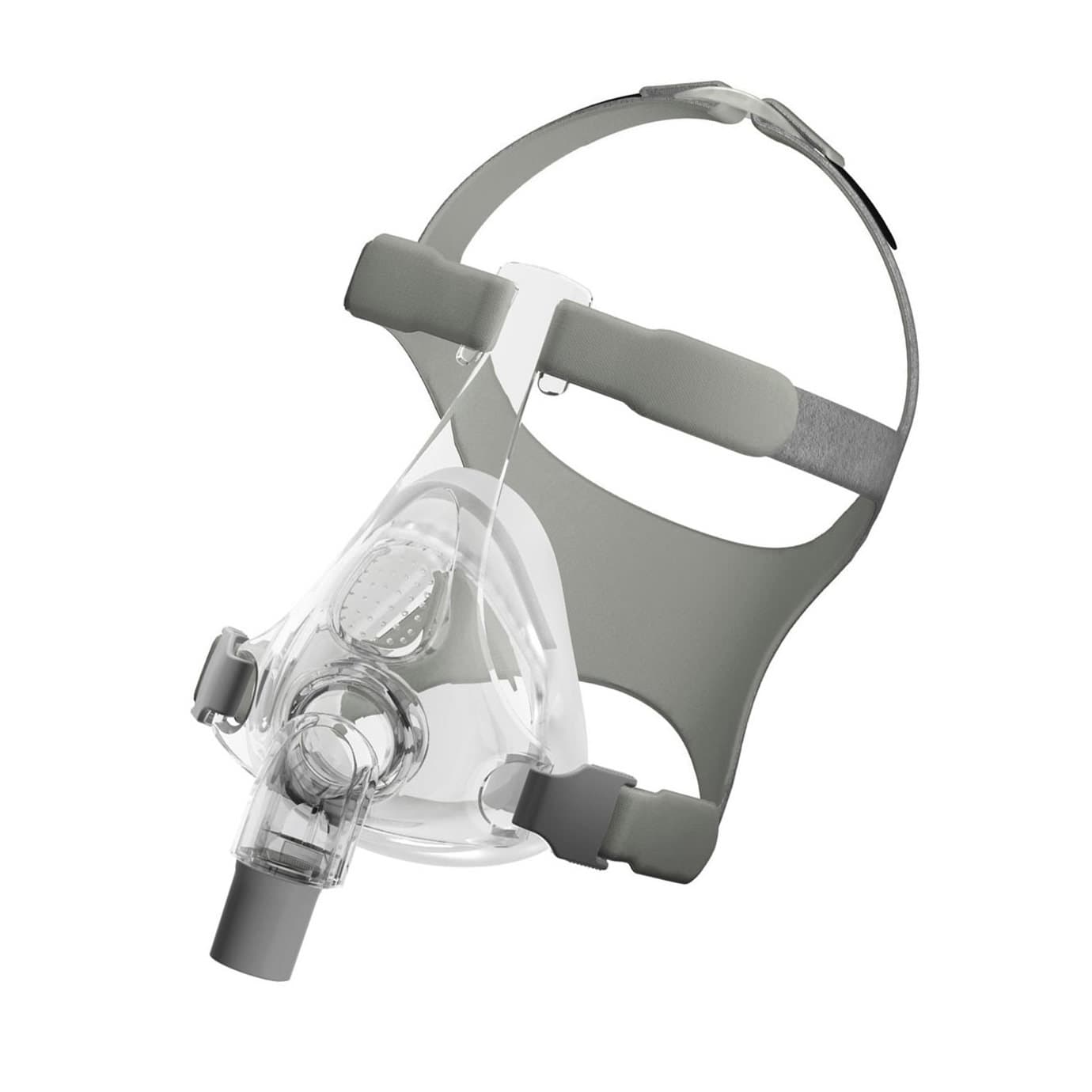

Fisher & Paykel Simplus Full Face Mask incorporates three key components, the RollFit Seal, ErgoForm Headgear and Easy Frame, all designed to work in harmony. In combination, these components offer the comfort, seal and easy use that Fisher & Paykel Healthcare masks are known for. All seal sizes (S, M, and L) fit on the one mask frame. The F&P Simplus Full Face Mask is intended to be used by individuals who have been diagnosed by a physician as requiring CPAP or Bi-Level Ventilator treatment. The F&P Simplus Full Face Mask is intended for Single Patient Adult Use in the home and Multiple Patient Adult Use in the hospital or other clinical setting where proper disinfection of the device can occur between patient uses.

Features

• Stretch and non-stretch headgear panels provide structure and support for optimal performance.
• The one piece seal ‘rolls’ back and forth on the bridge of the nose to minimize nose bridge pressure.
• The F&P Simplus incorporates three key components, the RollFit Seal, ErgoFit Headgear and Easy Frame, all designed to work in harmony.

Mask Assembly/Disassembly Instructions

• 1. Push the Silicone Seal onto the Mask Frame in the orientation shown until confirmation click is heard.
• 2. Slide the Forehead Loops of the Headgear into the slots of the Mask Frame.
• 3. Hook the Headgear Clips onto the Mask Frame.
• 4. Push the Swivel onto the Elbow.
• 5. Attach the assembled mask to the CPAP tube. Ensure that the Swivel is removed from the CPAP tube when disassembling.

Fitting Instructions

• 1. Hold the Frame with one hand and the Headgear in the other. One of the Headgear Clips should be hooked onto the Frame.
• 2. Place the Seal on the face and guide the Headgear over your head.
• 3. Hook the unattached Headgear Clip onto the Frame.
• 4. Gently tighten the Headgear Straps in the correct order. Position the top strap when first fitted and straps and when adjusting to avoid leak.

Cleaning Instructions

• 1. Wash your mask excluding the Headgear Assembly in soap dissolved in lukewarm water. Do not soak for more than 10 minutes.
• 2. Rinse thoroughly with fresh water, ensuring that all soap residues are removed.
• 3. Leave all parts to dry out of direct sunlight before reassembling.
