Invacare Tracer EX2 Standard Wheelchair
Product Information
Invacare Tracer EX2 Standard Wheelchair - Quick Ship Images
**The images on the website are for reference only and do not reflect the actual configuration of the product.** Learn more..
Invacare Tracer EX2 Standard Wheelchair - Quick Ship
Loyalty Points
You will earn up to 268 points on this order

Loyalty Points
You will earn up to 268 points on this order
Product Features and Benefits
.png)
Free Shipping
Quantity

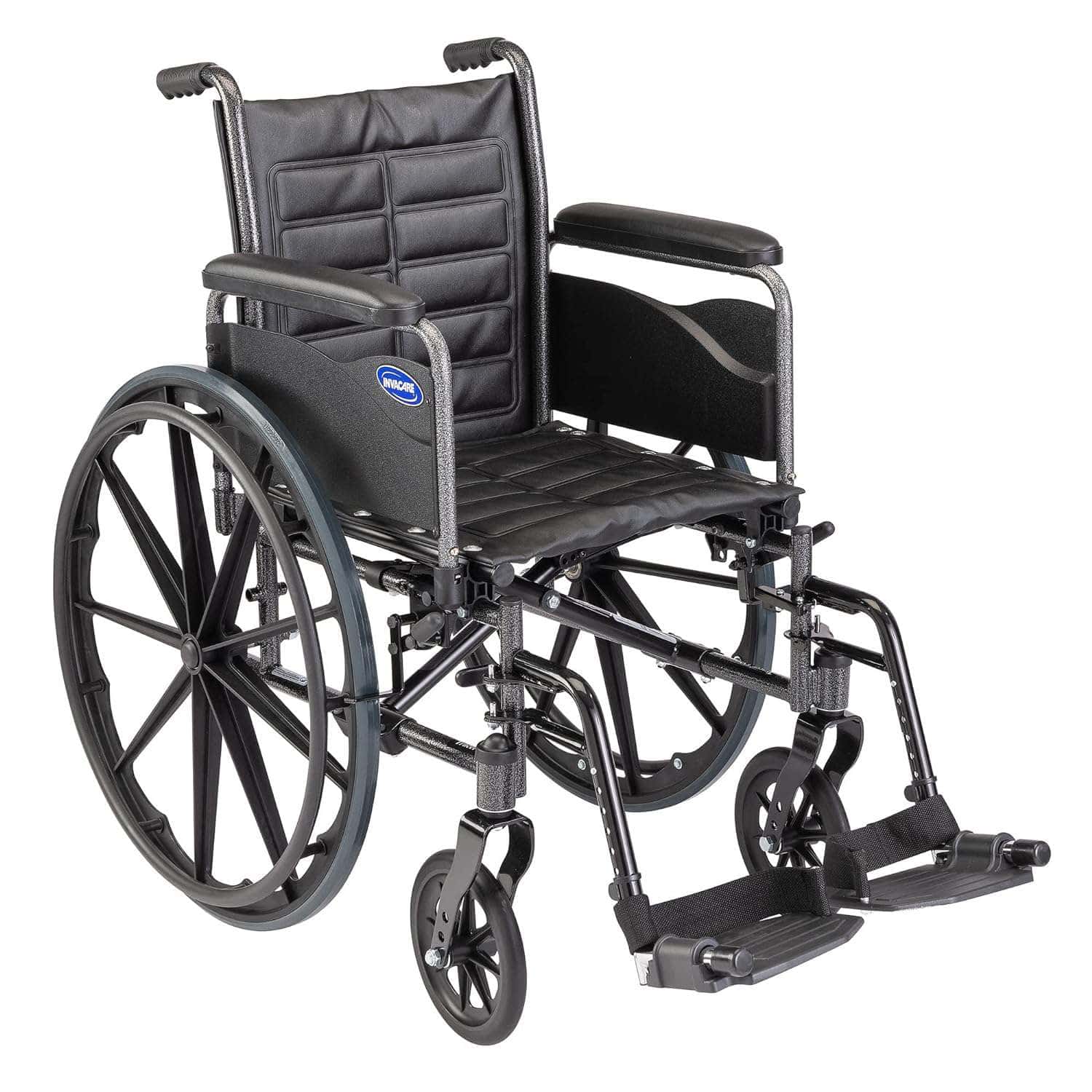

Invacare Tracer EX2 Wheelchair
Invacare Tracer EX2 Wheelchair is a top-tier mobility solution, combining exceptional versatility with unmatched durability. Designed for comfort and adaptability, this wheelchair features a reliable dual-axle system that enables seamless adjustments for 24-inch rear wheels and 8-inch casters, accommodating both adult and hemi seat-to-floor heights effortlessly. Built with a robust carbon steel frame and a heavy-duty seat inner liner, it ensures long-lasting performance with minimal maintenance. The wheelchair’s interchangeable components and offset permanent arms support seat widths up to 20 inches, making it ideal for various configurations, including permanent arms, hemi-spaced footrests, and a wide range of accessories. As part of the acclaimed Invacare 9000 Wheelchair Series, the Tracer EX2 offers dependable performance and customizable features, ensuring a personalized experience to meet individual mobility needs.
Features:

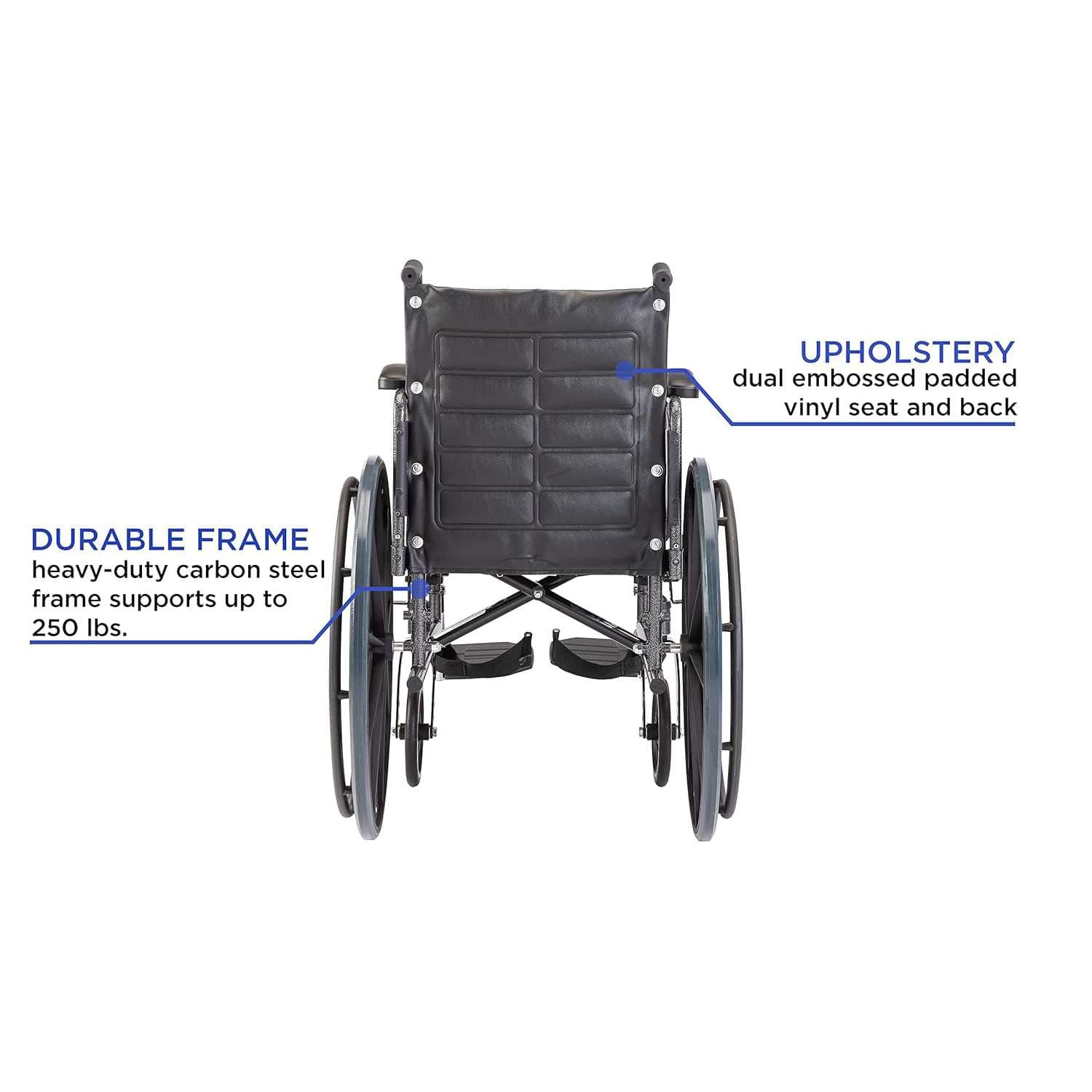

- Durable Carbon Steel Frame for Longevity
- Seat and Back Support with Heavy-Duty Liners
- Strong 14-Gauge Crossbraces for Added Durability

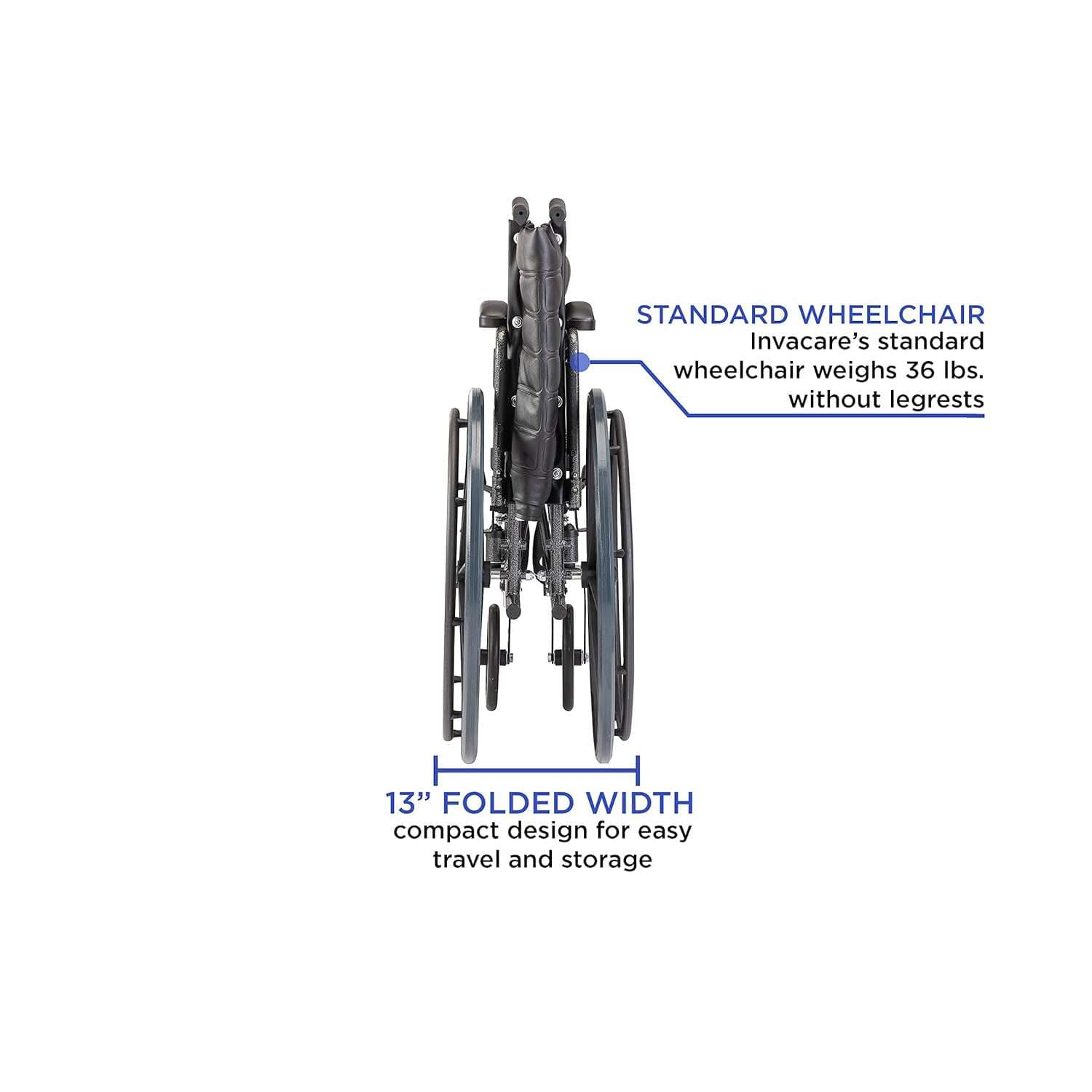

- Folds to 13 inches wide for convenient travel and storage
- Offset Permanent Arms (Available in 16", 18", and 20" widths)
Additional Features

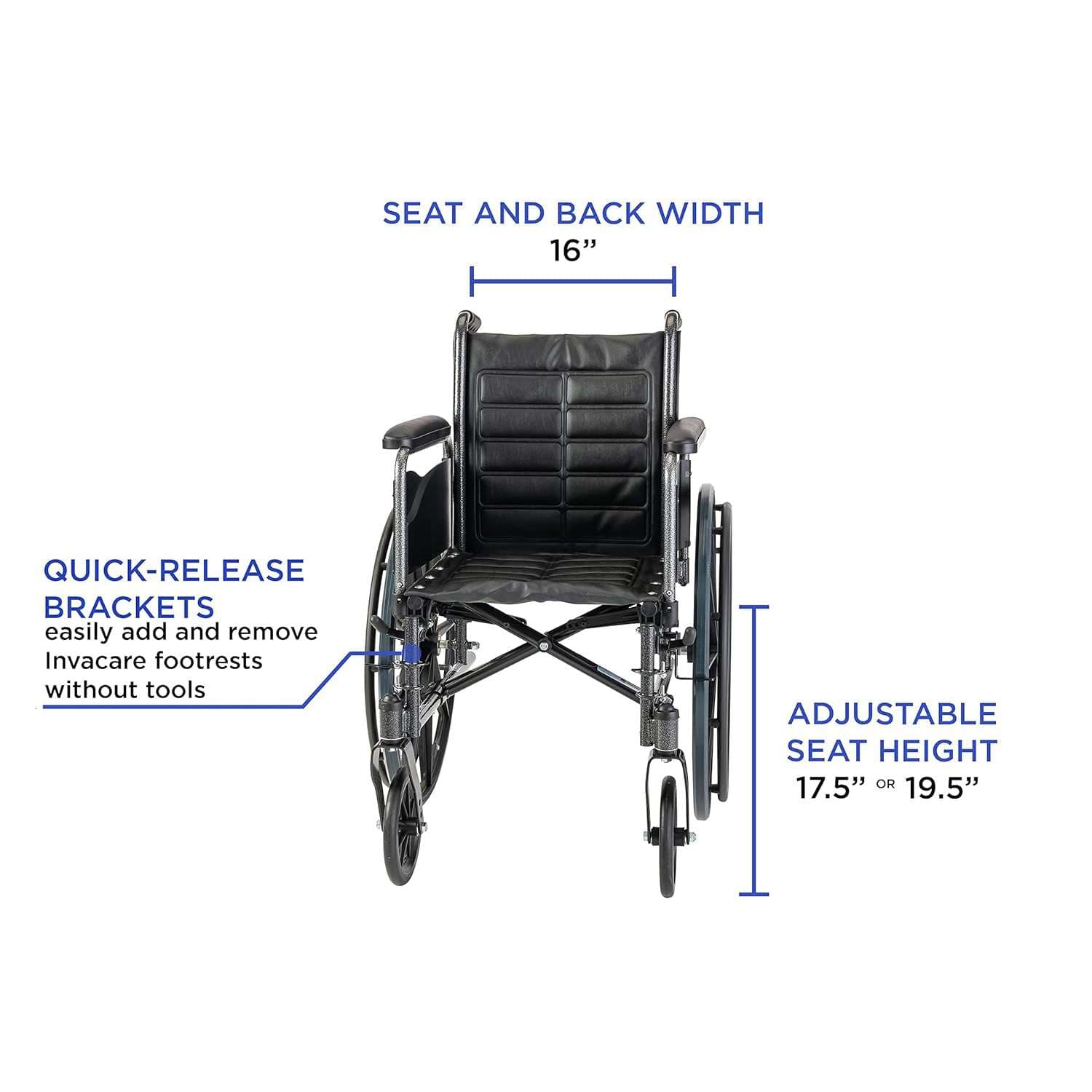

Dual axle positions allow for flexible adjustments in seat-to-floor heights, providing customization options.

Dual-embossed upholstery for increased durability and long-lasting performance.

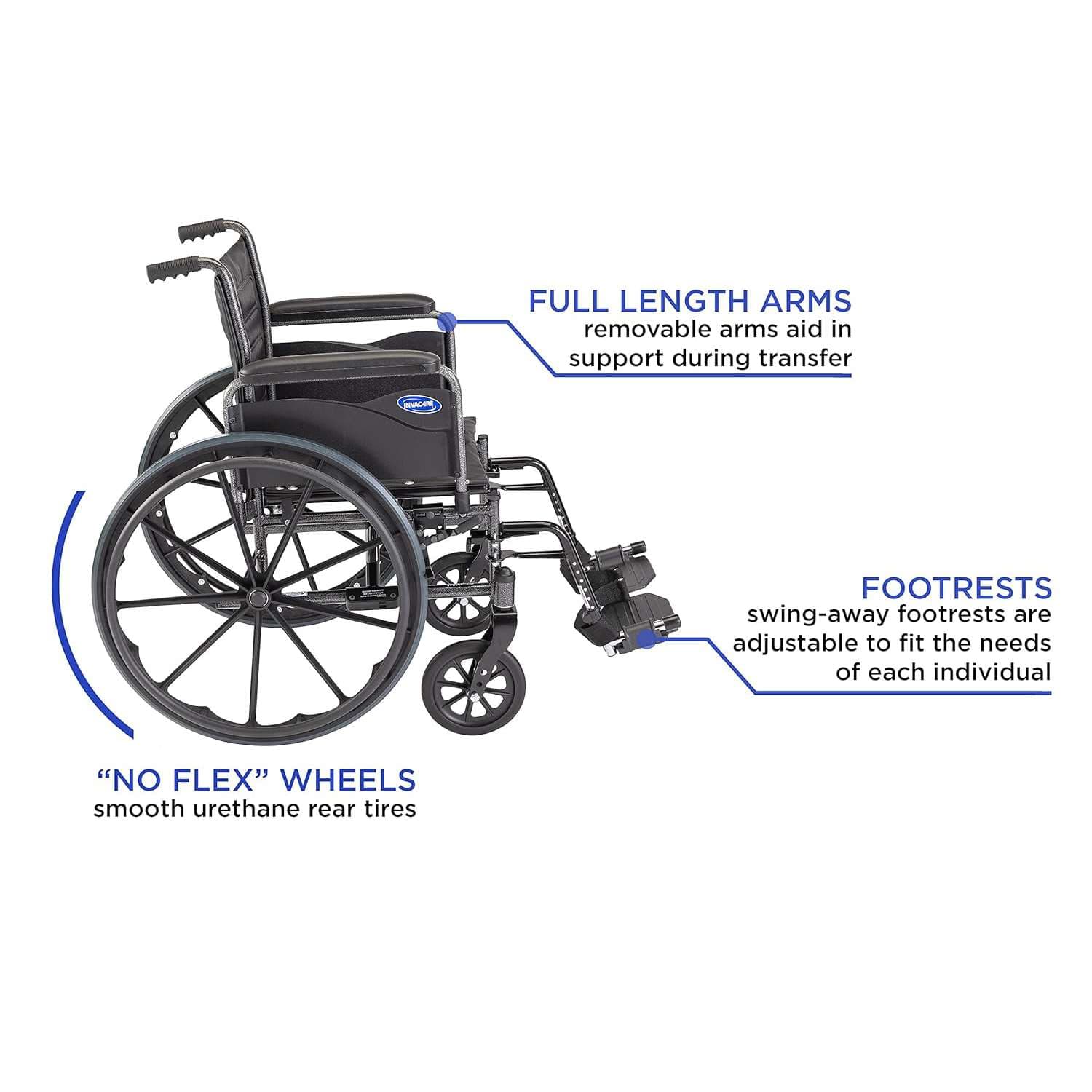

Offset permanent arms and removable arms are available in three widths: 16", 18", and 20", providing a custom fit.
Sizing
Invacare Tracer EX2 Wheelchairs Specifications
Model NO. | Back Height | Folded Width | Frame Type | Overall Depth | Overall Height | Overall Width | Product Weight | Seat Depth | Seat Width | Weight Capacity |
TREX26RP | 16" | 13" | 16" | 31.88" | 34" | 24.25" | 36 lbs. | 16" | 16" | 250 lbs. |
TREX26RFP | 16" | 13" | 16" | 31.88" | 34" | 24.25" | 36 lbs. | 16" | 16" | 250 lbs. |
TREX28PP | 16" | 13" | 16" | 31.88" | 34" | 23.25" | 36 lbs. | 16" | 18" | 250 lbs. |
TREX28RP | 16" | 13" | 16" | 31.88" | 34" | 26.25" | 36 lbs. | 16" | 18" | 250 lbs. |
TREX28RFP | 16" | 13" | 16" | 31.88" | 34" | 26.25" | 36 lbs. | 16" | 18" | 250 lbs. |
TREX20PP | 16" | 13" | 16" | 31.88" | 34" | 27.25" | 36 lbs. | 16" | 20" | 250 lbs. |
TREX20RP | 16" | 13" | 16" | 31.88" | 34" | 28.25" | 36 lbs. | 16" | 20" | 250 lbs. |
TREX20RFP | 16" | 13" | 16" | 31.88" | 34" | 28.25" | 36 lbs. | 16" | 20" | 250 lbs. |
Warranty
Manufacturer warrants this product as under:
- Five years warranty - Frame/chassis
- 13 months warranty - Upholstered materials (seat, back, and armrests of the arm assembly) and remaining components
- Manufacturer will not warrant parts damaged by improper installation and/or repair on the part of the individual owner or normal wear & tear.
- Manufacturer does not warrant parts damaged by neglect, accident, or misuse, nor parts altered or serviced by an agency not authorized by the manufacturer.
- Parts under warranty will be covered at no cost.
- Any labor cost for service under warranty is not covered as per our terms of sale.
- Standard manufacturer terms & conditions apply for warranty of this product.
Please call us for specific details.
Return
- Returns are accepted within 30 days from the date of shipment.
- All returns are subject to a 25% restocking fee.
- A Returned Goods Authorization (RGA) number is required for all returns. Unauthorized returns cannot be processed.
- Products must be in new, unused condition, untampered with, and returned in their original packaging at the customer’s expense.
- If the return is not due to a manufacturing defect, the original shipping cost and any credit card or PayPal processing fees will be deducted from the refund.
- For health and safety reasons, hygiene and bath products cannot be returned.
- Custom orders are non-refundable and non-returnable.
- The return policy follows the standard terms and conditions set by the manufacturer.
We are committed to customer satisfaction and are happy to assist with any questions regarding returns.
Please call us for specific details.
FAQs
Q: What seat widths are available for this model?
A: You can choose from 16", 18", or 20" seat widths, offering a more
personalized fit.
Q: Can the seat-to-floor height be adjusted?
A: Yes, the dual axle system allows for easy seat height adjustments for adult
or hemi configurations.
Q: Are the footrests or legrests customizable?

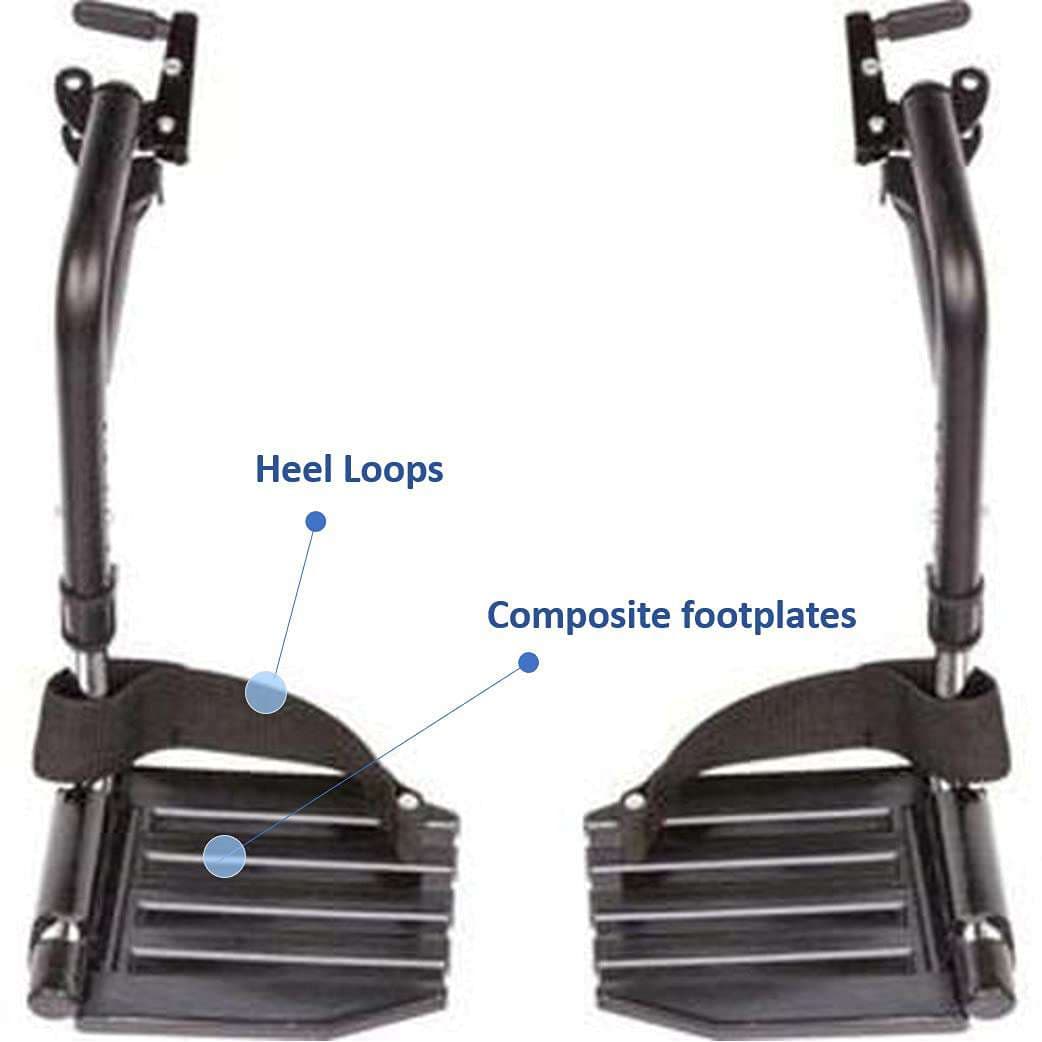

A: Yes, you can select from several front rigging options, including footrests,
elevating legrests, or articulating legrests.
Q: What types of armrests are available?
A: The wheelchair includes offset permanent arms, and removable arm options are
also available in all three widths.
Q: What is the weight capacity of the Tracer EX2?
A: This wheelchair can support up to 250 lbs.
Q: What is the weight of the Invacare Tracer EX2 wheelchair?
A: The wheelchair weighs 36 lbs, making it manageable for daily use and
transport.
Q: Is this wheelchair foldable for storage or travel?
A: Yes, it folds to just 13" wide, making it easy to store and transport.
Q: Is the frame durable and long-lasting?
A: It’s built with a carbon steel frame and 14-gauge crossbraces for
added strength.
Q: Does the wheelchair come with reinforced upholstery?
A: Yes, it includes dual-embossed upholstery for increased durability and
comfort.
Q: What series is the Tracer EX2 part of?
A: It is part of the Invacare 9000 Series, known for its quality and
interchangeable components.
